BALL VALVES

Reliable quarter-turn isolation solutions for industrial and process applications.

Water & Wastewater General Process Oil & Gas HVAC Utilities
ENGINEERING SPECIFICATION OVERVIEW

Industrial Ball Valves by RBV Valves

A Ball Valve is a quarter-turn isolation valve featuring a spherical disc (ball) with a central bore that rotates 90 degrees to permit unobstructed full flow or provide bubble-tight shut-off. RBV Valves supplies high-integrity ball valves manufactured in accordance with API 6D, API 608, ASME B16.34, and ISO 17292 standards, encompassing floating ball, trunnion-mounted pipeline, 3-piece bolted maintenance, and metal-seated severe service constructions.

Fire-Safe Certified API 607 and ISO 10497 tested fire-safe design with secondary metallic seat lip and graphite stem seals.
Double Block & Bleed (DBB) Trunnion mounted ball valves feature independent spring-loaded upstream/downstream floating seats with cavity relief.
Direct Actuator Mounting Integrated ISO 5211 mounting pad allows simple direct coupling of pneumatic or electric automated actuators.

Ball Valve Selection Matrix

Compare valve architecture, end connections, pressure classes, and target operating environments.

Valve Construction Body Architecture Size Range Pressure Rating Seat Options Primary Applications
3-Piece Bolted Ball 3-Pc Swing-Out Body 1/4" – 4" (DN8–DN100) 1000 WOG / Class 600 PTFE, RPTFE, PEEK In-line serviceable process lines, chemical plants, food & beverage
2-Piece Flanged Floating 2-Pc Split Body Flanged 1/2" – 8" (DN15–DN200) ASME Class 150 & 300 PTFE / Carbon-Filled PTFE Refinery hydrocarbon feeds, palm oil milling, steam headers
Trunnion Mounted Ball 2-Pc / 3-Pc Forged or Cast 2" – 36" (DN50–DN900) Class 150 to Class 2500 Devlon, Nylon, PEEK Oil & gas transmission, high pressure manifolds, ESD safety loops
Metal-Seated Severe Service Trunnion or Floating 1/2" – 24" (DN15–DN600) Class 150 to Class 1500 HVOF Tungsten / Chromium Carbide Abrasive slurries, boiler blowdown, catalyst lines, high temp (>260°C)

PRODUCT RANGE

Choose from our range of ball valve constructions for different applications and operating requirements.

Threaded End Valves Welded End Valves Flanged End Valves Wafer Type Valves

Threaded End Ball Valves

Compact threaded valves for industrial pipelines, utilities, high pressure, and 3-way diversion.

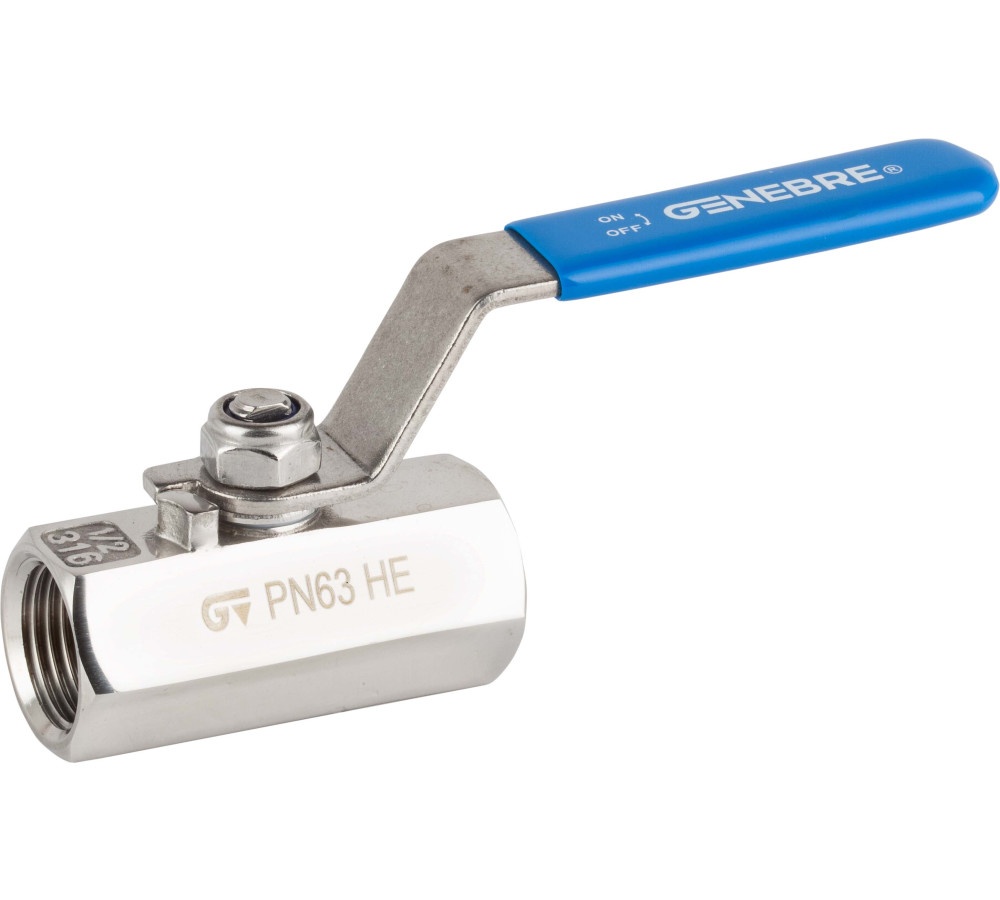

1-piece body reduced bore polished ball valve

1-piece body reduced bore polished ball valve

  • Body Material:CF8M (SS316) Polished
  • Ball Material:SS316 (CF8M)
  • Seat Material:PTFE (Virgin)
  • Temperature Range:-25°C to +180°C
  • Pressure Rating:1000 WOG (PN63 / 63 bar)
  • Size:1/4" to 2" (DN8–DN50)
  • Connection:Threaded (BSPT / NPT)
GET QUOTE

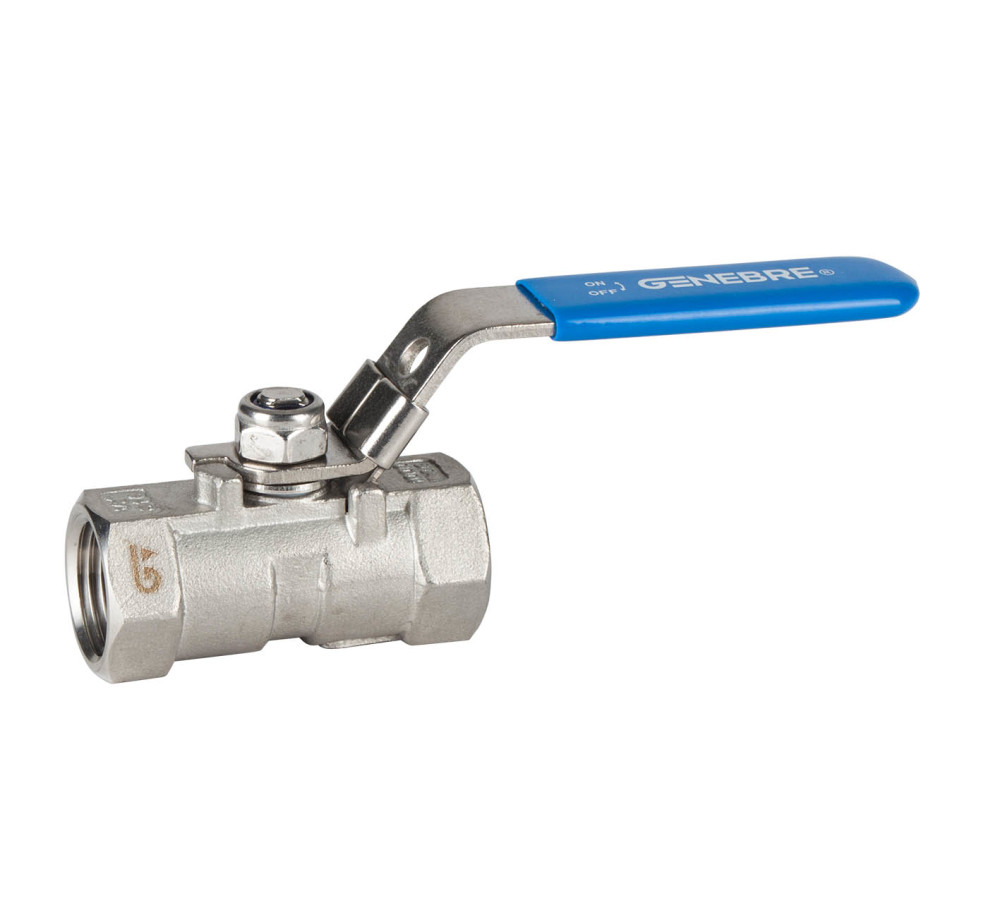

1-piece body reduced bore ball valve

1-piece body reduced bore ball valve

  • Body Material:CF8M (SS316) / WCB
  • Ball Material:SS316 (1.4408)
  • Seat Material:PTFE
  • Temperature Range:-25°C to +180°C
  • Pressure Rating:1000 WOG (PN63 / 63 bar)
  • Size:1/4" to 2" (DN8–DN50)
  • Connection:Threaded (BSPT / NPT)
GET QUOTE

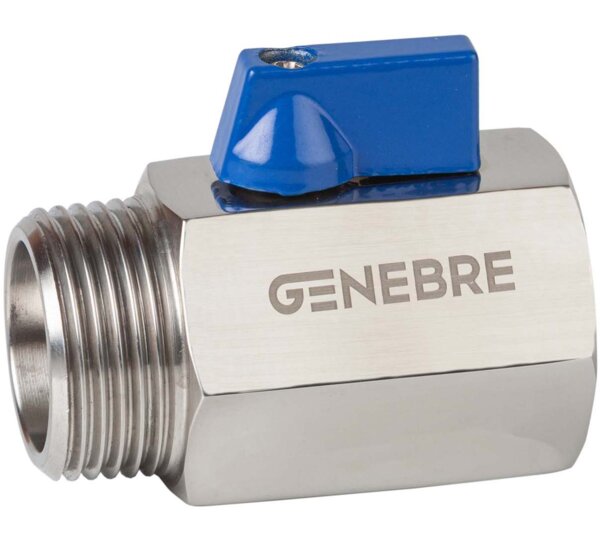

1-piece body reduced bore polished ball valve M-F

1-piece body reduced bore polished ball valve M-F

  • Body Material:CF8M (SS316) Polished
  • Ball Material:SS316 (1.4408)
  • Seat Material:PTFE
  • Temperature Range:-25°C to +180°C
  • Pressure Rating:1000 WOG (PN63 / 63 bar)
  • Size:1/4" to 2" (DN8–DN50)
  • Connection:Threaded Male x Female (M-F)
GET QUOTE

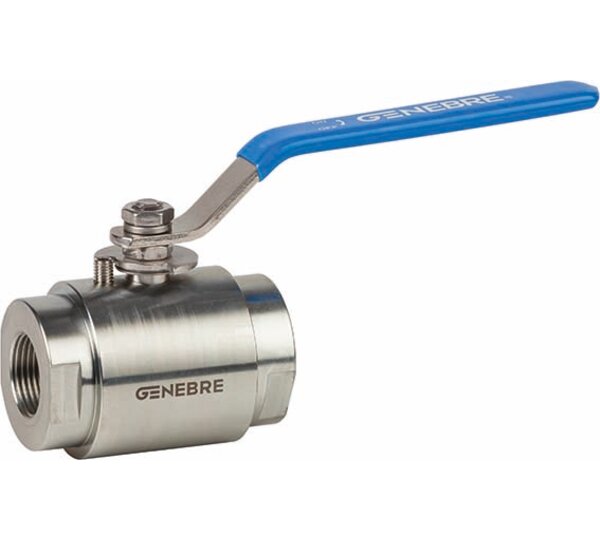

High Pressure full port ball valve

High Pressure full port ball valve

  • Body Material:ASTM A105 / CF8M / F316
  • Ball Material:SS316 / F316 Heavy Duty
  • Seat Material:Delrin / PEEK / R-PTFE
  • Temperature Range:-29°C to +200°C
  • Pressure Rating:2000 to 6000 PSI (PN140–PN420)
  • Size:1/4" to 2" (DN8–DN50)
  • Connection:Threaded NPT / Socket Weld
GET QUOTE

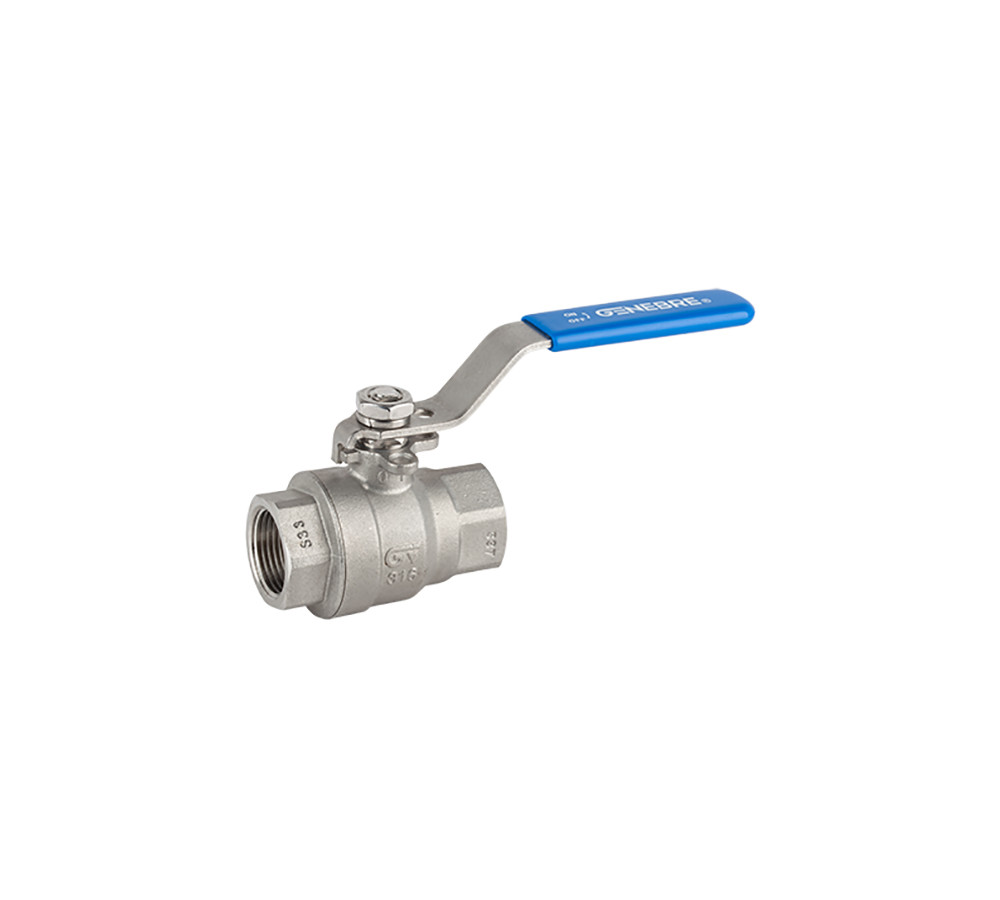

2-piece body full bore ball valve

2-piece body full bore ball valve

  • Body Material:CF8M (SS316) / WCB
  • Ball Material:SS316 (Blowout-Proof)
  • Seat Material:PTFE + 15% GF
  • Temperature Range:-25°C to +180°C
  • Pressure Rating:1000 WOG (PN63 / 63 bar)
  • Size:1/4" to 4" (DN8–DN100)
  • Connection:Threaded (BSPT / NPT)
GET QUOTE

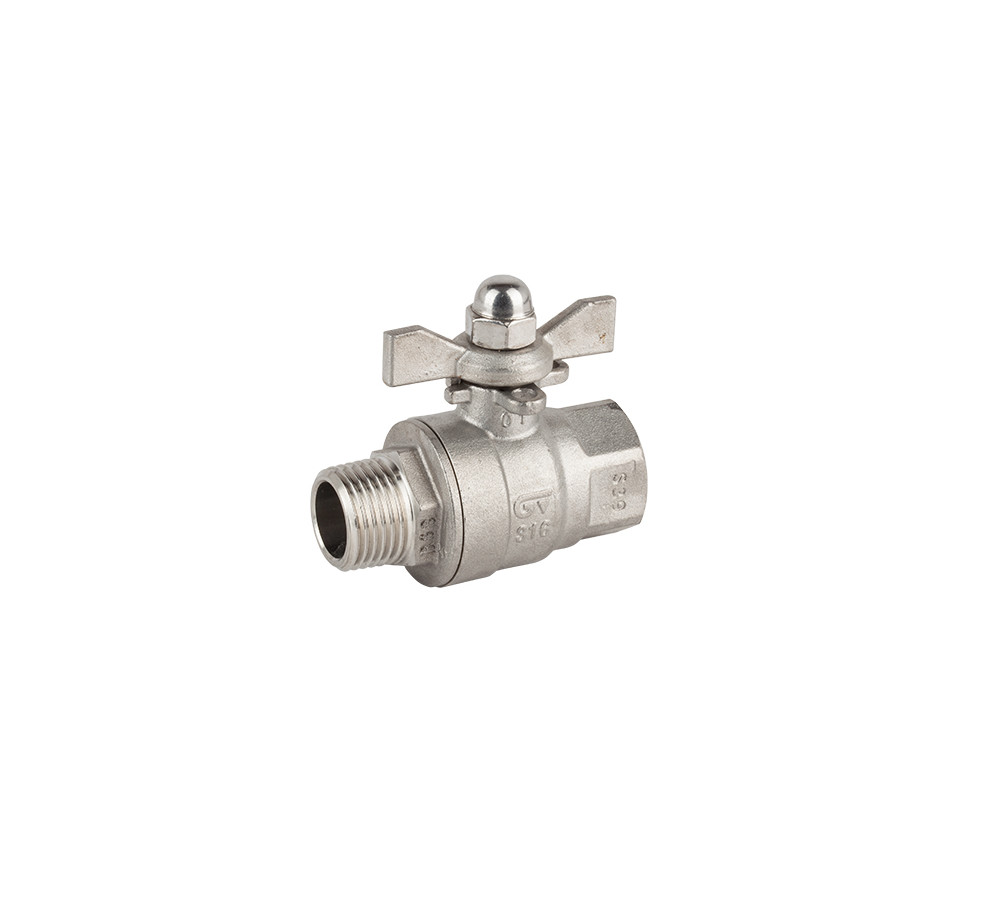

2-piece body full bore ball valve with wing handle

2-piece body full bore ball valve with wing handle

  • Body Material:CF8M (SS316)
  • Ball Material:SS316 (Blowout-Proof)
  • Seat Material:PTFE + 15% GF
  • Temperature Range:-25°C to +180°C
  • Pressure Rating:1000 WOG (PN63 / 63 bar)
  • Size:1/4" to 1" (DN8–DN25)
  • Connection:Threaded (Wing Handle)
GET QUOTE

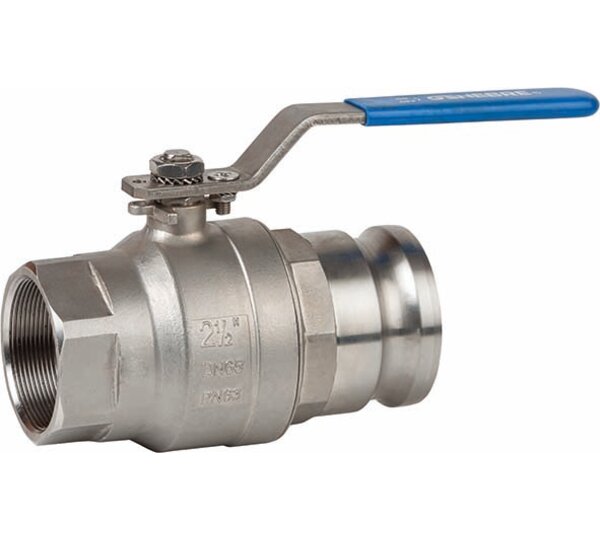

2-piece body full bore ball valve with camlock end

2-piece body full bore ball valve with camlock end

  • Body Material:CF8M (SS316)
  • Ball Material:SS316 (1.4408)
  • Seat Material:PTFE + 15% GF
  • Temperature Range:-20°C to +150°C
  • Pressure Rating:1000 WOG / Camlock Coupler Rated
  • Size:1/2" to 3" (DN15–DN80)
  • Connection:Quick Disconnect Camlock / Threaded
GET QUOTE

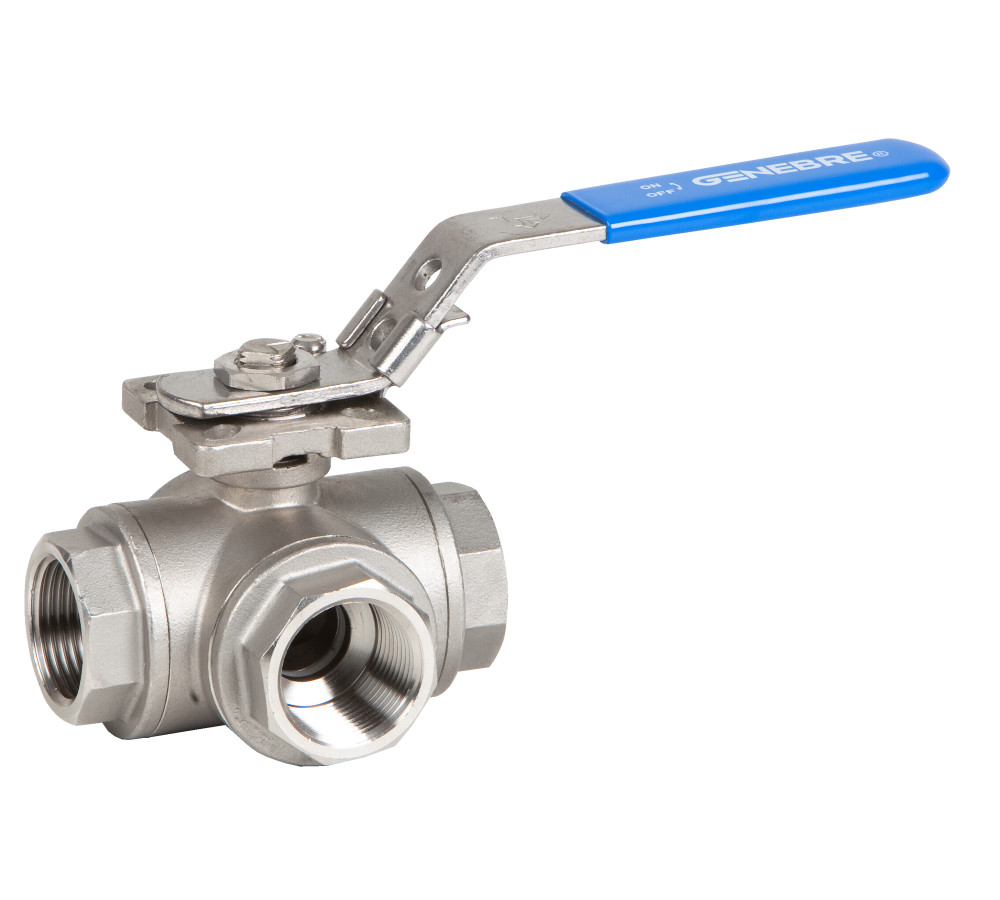

3-way ball valve

3-way ball valve

  • Body Material:CF8M (SS316) / WCB
  • Ball Material:SS316 (L-Port / T-Port)
  • Seat Material:PTFE + 15% GF (4-Seat Design)
  • Temperature Range:-25°C to +180°C
  • Pressure Rating:1000 WOG (PN63 / 63 bar)
  • Size:1/4" to 2" (DN8–DN50)
  • Connection:Threaded (BSPT / NPT)
GET QUOTE
3-piece body full bore ball valve

3-piece body full bore ball valve

  • Body Material:CF8M (SS316) / WCB
  • Ball Material:SS316 Anti-Static
  • Seat Material:PTFE + 15% GF / PEEK
  • Temperature Range:-25°C to +180°C (up to +260°C)
  • Pressure Rating:1000 WOG / 2000 WOG (PN63)
  • Size:1/4" to 4" (DN8–DN100)
  • Connection:Threaded (BSPT / NPT) / SW
GET QUOTE

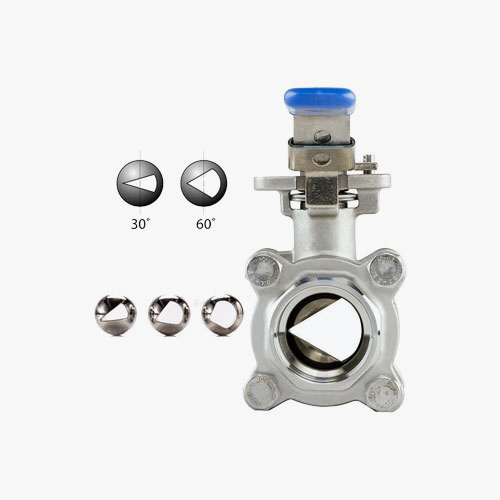

3-piece body "V" control ball valve

3-piece body "V" control ball valve

  • Body Material:CF8M (SS316) / WCB
  • Ball Material:SS316 with 30° / 60° V-Notch
  • Seat Material:PTFE + 15% GF / Metal Seat
  • Temperature Range:-25°C to +200°C
  • Pressure Rating:1000 WOG (PN63)
  • Size:1/2" to 3" (DN15–DN80)
  • Connection:Threaded / Socket Weld (Modulating)
GET QUOTE

Welded End Ball Valves

In-line serviceable welded and hygienic tank-bottom ball valves for high-integrity piping.

3-piece body full bore ball valve

3-piece body full bore ball valve (Welded)

  • Body Material:CF8M (1.4408) / WCB
  • Ball Material:SS316 Anti-Static
  • Seat Material:PTFE + 15% GF
  • Temperature Range:-25°C to +180°C
  • Pressure Rating:1000 WOG (PN63)
  • Size:1/4" to 4" (DN8–DN100)
  • Connection:Butt Weld (BW) / Socket Weld (SW)
GET QUOTE

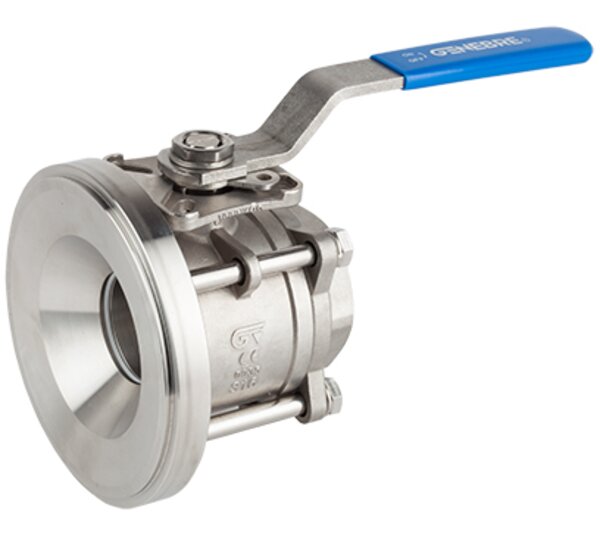

Tank bottom full bore ball valve

Tank bottom full bore ball valve

  • Body Material:CF8M (SS316) / 316L
  • Ball Material:SS316 Polished
  • Seat Material:PTFE / Cavity Filled / TFM 1600
  • Temperature Range:-20°C to +200°C
  • Pressure Rating:Class 150 / PN16 / PN40
  • Size:1/2" to 4" (DN15–DN100)
  • Connection:Tank Pad Flange x BW / Clamp
GET QUOTE

Flanged End Ball Valves

ASME and EN flanged floating, 3-way, and trunnion-mounted ball valves for critical process pipelines.

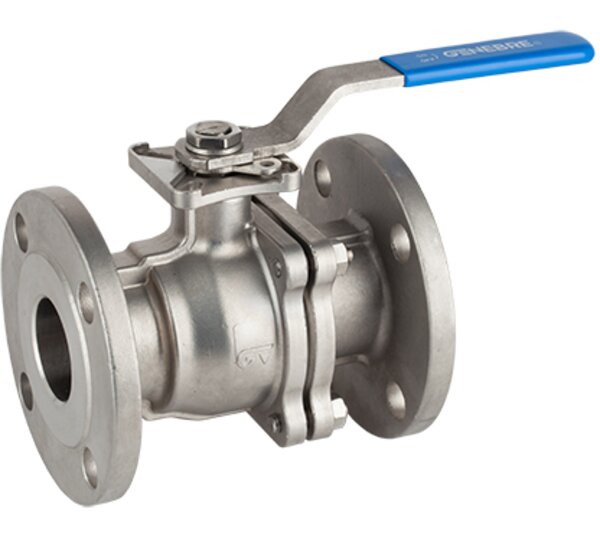

2-pieces full bore flanged ball valve

2-pieces full bore flanged ball valve

  • Body Material:ASTM A351 CF8M / A216 WCB
  • Ball Material:SS316 (CF8M) Anti-Static
  • Seat Material:PTFE + 15% GF / R-PTFE
  • Temperature Range:-30°C to +200°C
  • Pressure Rating:ASME Class 150 / 300 / PN16
  • Size:1/2" to 8" (DN15–DN200)
  • Connection:Flanged (ASME B16.5 RF / EN 1092-1)
GET QUOTE

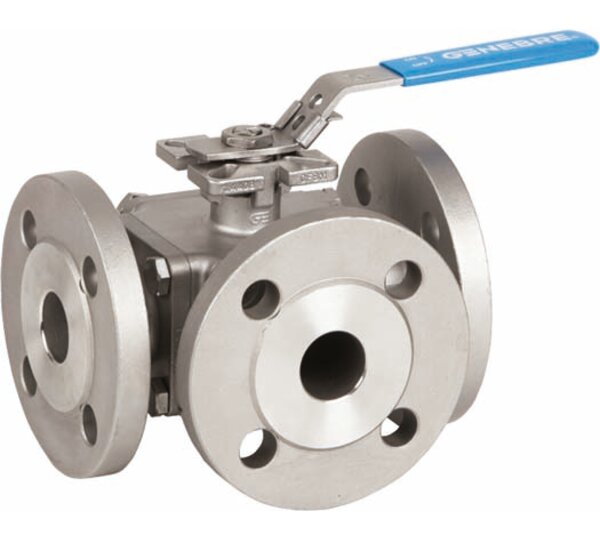

3-way full bore ball valve

3-way full bore ball valve

  • Body Material:ASTM A351 CF8M / A216 WCB
  • Ball Material:SS316 (L-Port / T-Port)
  • Seat Material:PTFE + 15% GF (4-Seat Design)
  • Temperature Range:-25°C to +180°C
  • Pressure Rating:ASME Class 150 / PN16
  • Size:1" to 6" (DN25–DN150)
  • Connection:Flanged (ASME B16.5 / EN 1092-1)
GET QUOTE

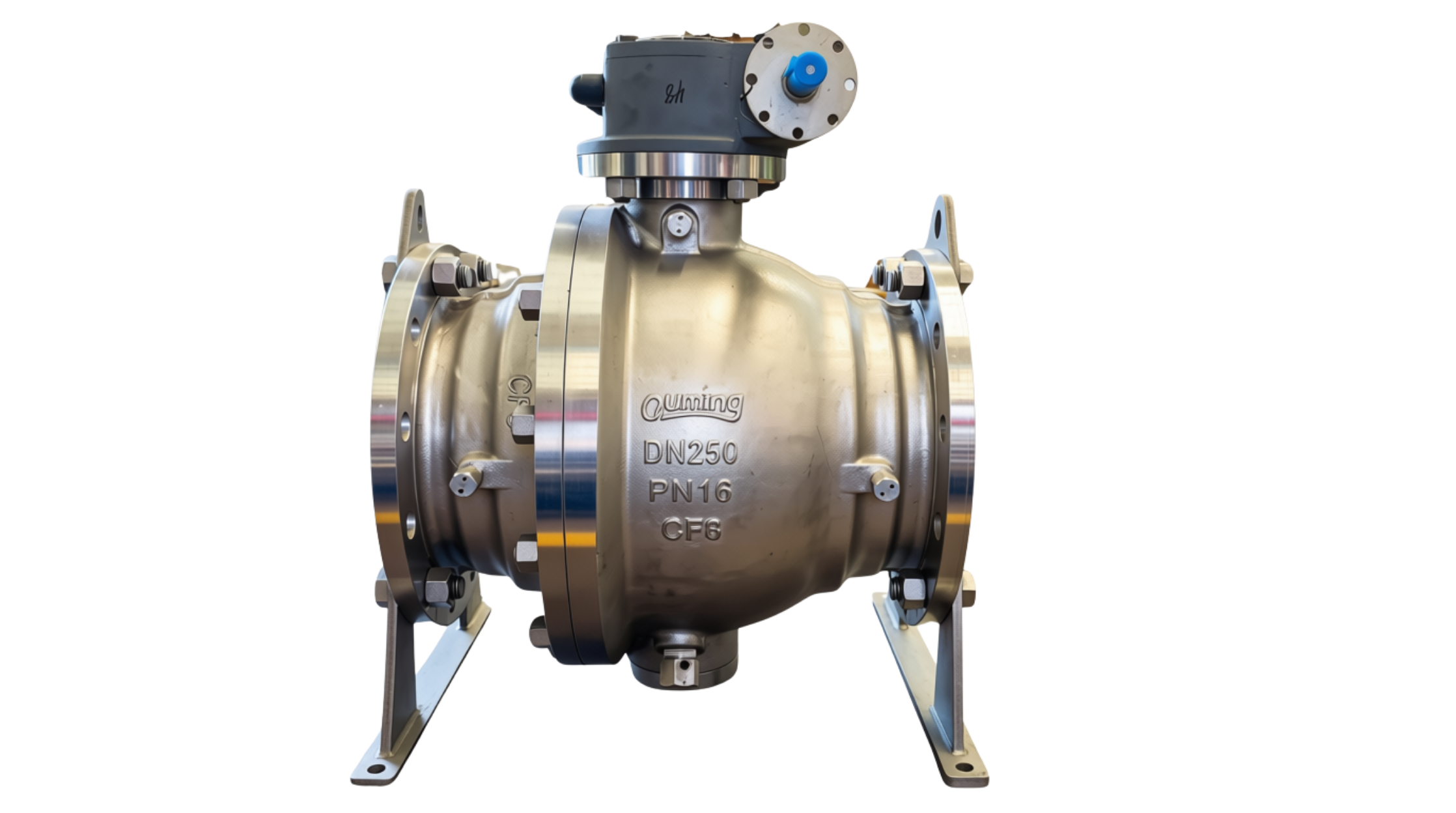

Trunnion ball valve

Trunnion ball valve

  • Body Material:A216 WCB / A105 / LF2 / F316
  • Ball Material:F316 / F304 / A105+ENP
  • Seat Material:Devlon / PEEK / Metal-to-Metal
  • Temperature Range:-46°C to +200°C (up to +425°C)
  • Pressure Rating:Class 150 to Class 2500
  • Size:2" to 36" (DN50–DN900)
  • Connection:Flanged (RF/RTJ) / Butt Weld
GET QUOTE

Wafer Type Ball Valves

Ultra-compact face-to-face wafer ball valves, heated jacket designs, ISO direct-mount, and V-segment control valves.

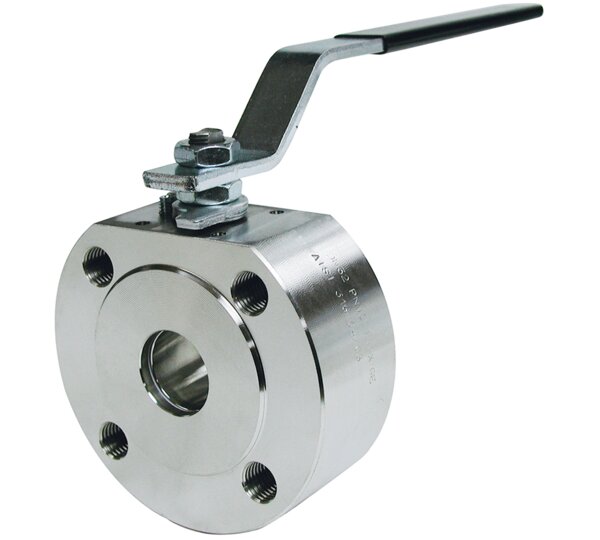

1-piece full bore ball valve

1-piece full bore ball valve

  • Body Material:CF8M (1.4408) / WCB
  • Ball Material:SS316 (1.4408) Polished
  • Seat Material:PTFE + 15% GF
  • Temperature Range:-25°C to +180°C
  • Pressure Rating:16 bar (PN16) / Class 150
  • Size:1/2" to 4" (DN15–DN100)
  • Connection:Wafer (Between Flanges EN 1092)
GET QUOTE

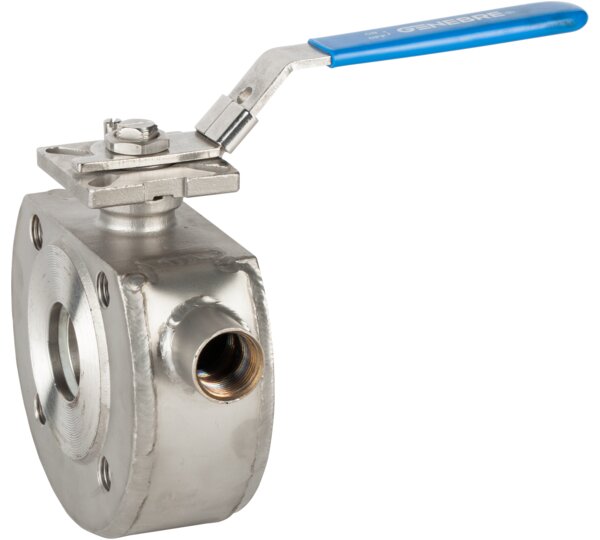

1-piece full bore ball valve with heating jacket

1-piece full bore ball valve with heating jacket

  • Body Material:CF8M (1.4408) with Jacket
  • Ball Material:SS316 (1.4408)
  • Seat Material:PTFE + 15% GF
  • Temperature Range:-25°C to +200°C
  • Pressure Rating:16 bar (PN16) / Class 150
  • Size:1/2" to 4" (DN15–DN100)
  • Connection:Wafer with Steam Jacket Ports
GET QUOTE
1-piece full bore ball valve with ISO mounting

1-piece full bore ball valve with ISO mounting

  • Body Material:CF8M (SS316) / WCB
  • Ball Material:SS316 (1.4408)
  • Seat Material:PTFE + 15% GF
  • Temperature Range:-25°C to +180°C
  • Pressure Rating:16 bar (PN16) / 1000 WOG
  • Size:1/2" to 4" (DN15–DN100)
  • Connection:Direct ISO 5211 Mount / Wafer
GET QUOTE

Industrial Ball Valves: Technical Q&A

Answers to common questions regarding valve architectures, fire-safe ratings, swing-out maintenance, and severe service coatings.

What are the primary differences between floating and trunnion mounted ball valves?

In floating ball valves, the ball is suspended between two resilient seats and pushed downstream by line pressure to form a seal against the downstream seat. Floating designs are compact and ideal for sizes DN8 to DN200 up to Class 600. In trunnion mounted ball valves, the ball is mechanically anchored on top and bottom bearings while spring-energized floating seats move against the ball. Trunnion designs drastically reduce operating torque, enable double block and bleed (DBB), and handle larger diameters (DN50 to DN900) and pressures up to Class 2500.

What certifications do RBV ball valves carry for hazardous oil and gas service?

RBV ball valves are engineered to API 6D / API 608 standards, certified fire-safe to API 607 7th Edition and ISO 10497, fugitive emission tested to ISO 15848-1 / API 641, and comply with NACE MR0175 / ISO 15156 for sour gas and H2S service.

What are the advantages of a 3-piece bolted ball valve design?

A 3-piece bolted ball valve features a central body section containing the ball and seats sandwiched between two end caps. This allows "swing-out" or in-line maintenance where internal seats and seals can be replaced quickly without unscrewing the pipe connections or cutting welded pipe joints.

When should metal-seated ball valves be specified over soft-seated ball valves?

Metal-seated ball valves (featuring Tungsten Carbide or Chromium Carbide HVOF hard coatings) are required for temperatures exceeding +260°C, highly abrasive slurries (catalyst fines, sand, ash), high-frequency cycling, and severe cavitation where polymeric soft seats (PTFE, PEEK) would degrade or tear.

Can RBV ball valves be automated for on/off or modulating control?

Yes. Most RBV ball valves include an integrated ISO 5211 direct mounting pad. They can be fitted with pneumatic rack-and-pinion actuators, heavy scotch yoke actuators, or motorized electric actuators along with solenoid valves, limit switches, and 4-20mA smart positioners.

What body and trim metallurgies are available for chemical and palm oil industries in Malaysia?

RBV supplies ball valves in ASTM A351 CF8M (SS316), CF3M (SS316L), Cast Steel WCB, Forged A105N, Duplex 2205 (F51), Super Duplex 2507 (F53), Hastelloy C, and Monel to handle palm oil crude, free fatty acids (FFA), caustic soda, and inorganic acids.
