PRODUCT RANGE
Choose from our comprehensive range of valve actuators, solenoid valves, smart positioners, and air preparation units.
Pneumatic Actuation
Compressed air quarter-turn drives for fast cycling, safety shut-off, and hazardous areas.
Rack & Pinion Pneumatic Actuator
- Body Material:Extruded Aluminium Hard Anodized
- Operating Principle:Rack & Pinion Double Acting / Spring Return
- Torque Output:Up to 10,000 Nm
- Air Supply Pressure:2.5 Bar to 8 Bar (Clean Dry Air)
- Rotation Angle:90° (±5° travel adjustment)
- Mounting Standard:ISO 5211 Bottom / NAMUR VDI/VDE Top
- Certification:ATEX Ex II 2GD / SIL 3 Capable
Scotch Yoke Pneumatic Actuator
- Body Material:Ductile Iron / Carbon Steel Housing
- Torque Curve:Symmetric / Canted Yoke (High Breakout)
- Torque Output:Up to 300,000 Nm
- Air Supply Pressure:3 Bar to 10 Bar / Hydraulic up to 200 Bar
- Operating Temperature:-40°C to +100°C (Low Temp options)
- Fail-Safe Mode:Spring-Return Fail Close / Fail Open
- Application:Heavy-Duty Pipeline ESD & Ball Valves
Electric Actuation
Smart motor-driven actuators with integrated local controls and multi-bus communications.
Multi-Turn Electric Actuator
- Enclosure Material:Die-Cast Aluminium Epoxy Coated IP68
- Output Torque:30 Nm to 3,000 Nm (Direct) / Up to 100,000 Nm with Gearbox
- Power Supply:380V/415VAC 3-Phase, 240VAC 1-Phase, 24VDC
- Control System:Non-Intrusive Smart Display / Modbus / Profibus
- Manual Override:Declutchable Handwheel with Auto Reset
- Stem Type:Rising Stem / Non-Rising Stem Adaptable
- Application:Gate Valves, Globe Valves & Penstocks
Single-Phase Quarter-Turn Electric Actuator
- Power Supply:220V–240V AC 50/60 Hz Single Phase
- Torque Output:50 Nm to 2,000 Nm
- Enclosure Rating:Weatherproof IP67 (Aluminium Housing)
- Travel Time:15s to 30s per 90° rotation
- Control Mode:On/Off or 4–20mA Modulating Card
- Mounting Standard:ISO 5211 Direct Mount Flange
- Safety Feature:Internal Space Heater & Thermal Cutout

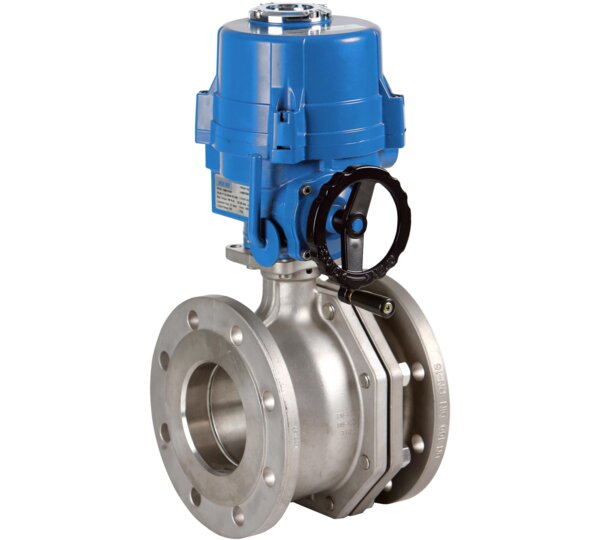

Three-Phase Quarter-Turn Electric Actuator
- Power Supply:380V–415V AC 3-Phase Industrial Power
- Torque Output:300 Nm to 4,000 Nm
- Duty Cycle:S4 Heavy Duty Modulating (up to 1200 starts/hr)
- Enclosure Rating:IP68 Submersible / Explosion Proof Ex d
- Control Signals:4-20mA In/Out + Relay Feedback Contacts
- Mounting Standard:ISO 5211 Heavy-Duty Direct Pad
- Application:High Cycle Water, Steam & Heavy Industrial
Valve Control Accessories & Instrumentation
Direct NAMUR solenoid valves, explosion-proof coils, smart positioners, and limit switch boxes.
Reflex NAMUR Solenoid Valve
- Body Material:Anodized Aluminium / SS316
- Trim Material:5/2-Way & 3/2-Way Convertible Spool
- Seat Material:Nitrile (NBR) / Viton Resilient Seals
- Temperature Range:-20°C to +60°C
- Pressure Rating:2 to 8 Bar Pneumatic Supply
- Size:1/4" Ported NAMUR Direct Mount
- Connection:1/4" BSP & NAMUR Interface

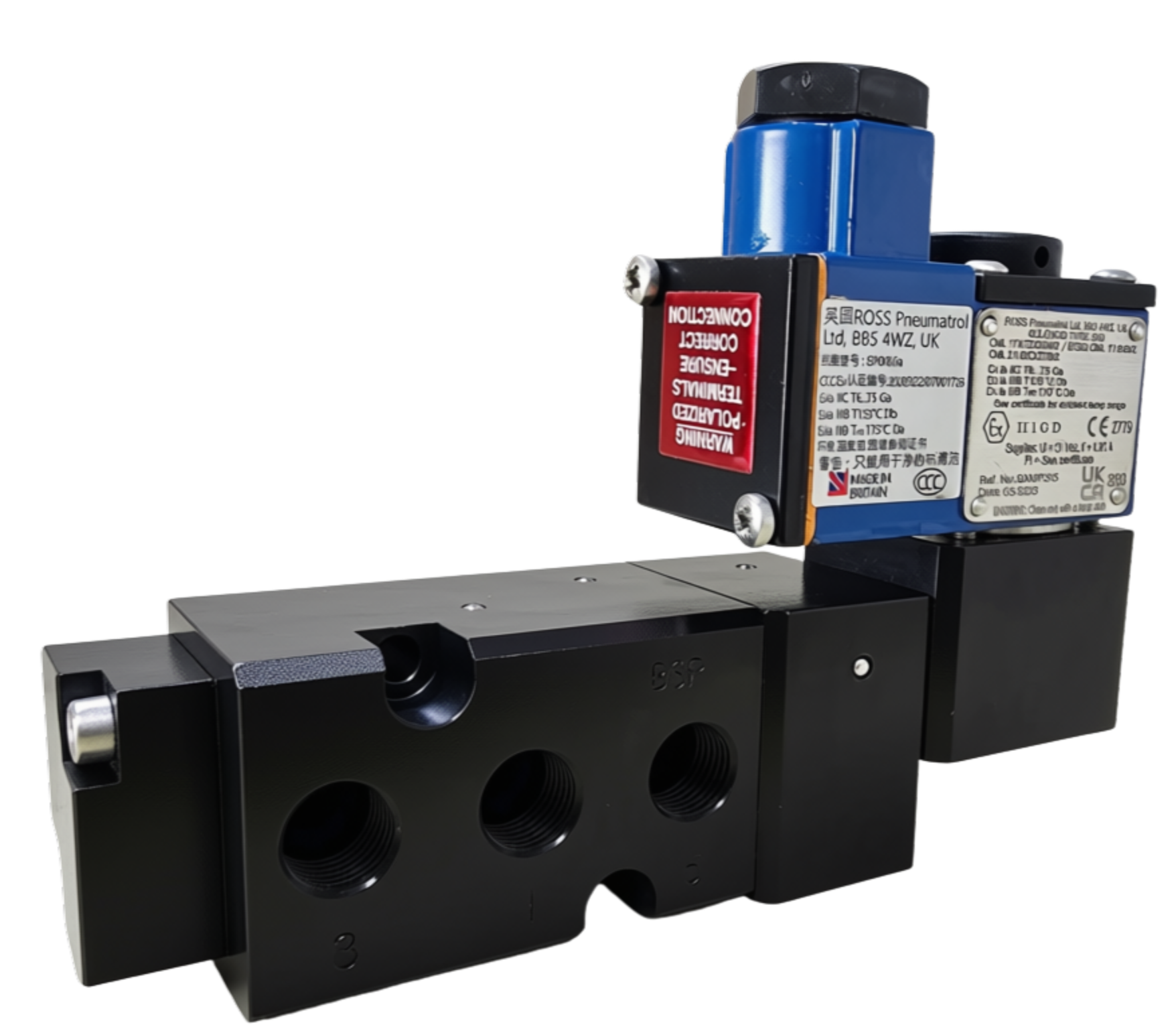

Intrinsically Safe Ex ia NAMUR Solenoid Valve
- Body Material:Black Anodized Aluminium / SS316
- Trim Material:3/2, 5/2 Pilot Operated Spool
- Seat Material:Resilient NBR / Viton Seals
- Temperature Range:-20°C to +60°C
- Pressure Rating:2.5 to 8 Bar (Ex ia IIC T6 Ga)
- Size:1/4" Ported NAMUR Direct Mount
- Connection:1/4" BSP & NAMUR Interface

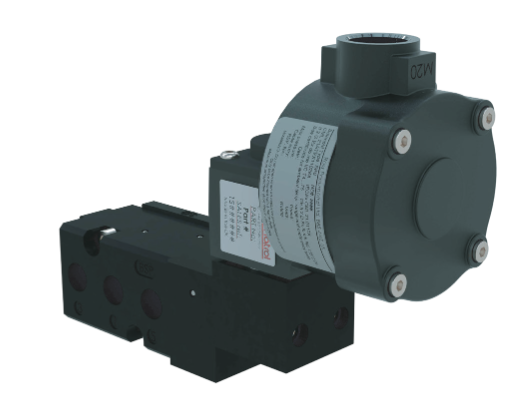

Flameproof Ex db mb Solenoid Valve
- Body Material:Aluminium / Stainless Steel / Brass
- Trim Material:3/2 or 5/2 Direct Solenoid Spool
- Seat Material:Resilient NBR / Viton Seals
- Temperature Range:-40°C to +80°C
- Pressure Rating:2 to 10 Bar (Ex db mb IIC Gb)
- Size:1/4" Ported NAMUR Direct Mount
- Connection:1/2" NPT / M20 Conduit & NAMUR Interface
Smart Rotary Valve Positioner
- Body Material:Die-Cast Aluminium Weatherproof IP66
- Input Signal:4–20 mA Current Loop with HART / Profibus
- Feedback Signal:4–20 mA Position Feedback Transmitter
- Feedback Type:Non-Contact Hall Effect Sensor
- Supply Air Pressure:1.4 to 7.0 Bar (Instrument Air)
- Features:Auto-Calibration & LCD Diagnostic Display
- Mounting:NAMUR VDI/VDE 3845 Rotary Pad
Weatherproof Limit Switch Box IP67
- Enclosure Material:Die-Cast Aluminium Epoxy Coated IP67
- Visual Indicator:High-Visibility 3D Yellow/Red Beacon
- Switches:2x SPDT Mechanical Microswitches / Proximity
- Electrical Rating:16A 250VAC / 0.6A 125VDC
- Conduit Entries:Dual M20 x 1.5 or 1/2" NPT Ports
- Terminal Points:8-Point Pre-Wired Terminal Strip
- Mounting Bracket:NAMUR Stainless Steel Bracket Included
Air Filter Regulator
- Body Material:Die-Cast Aluminium with Metal Bowl Guard
- Trim Material:5 Micron Sintered Bronze / PE Element
- Seat Material:Resilient Buna-N Valve & Diaphragm
- Temperature Range:+4°C to +52°C
- Pressure Rating:Max Inlet 10 Bar (Regulating 0.5–8.5 Bar)
- Size:1/4", 3/8", 1/2" Ports
- Connection:Threaded BSP / NPT
Air Filter Regulator Lubricator FRL Unit
- Body Material:Aluminium Alloy with Polycarbonate Bowls
- Trim Material:3-in-1 Modular Filter + Regulator + Lubricator
- Seat Material:Resilient Buna-N Valve & Diaphragm
- Temperature Range:+4°C to +52°C
- Pressure Rating:0.5 to 10 Bar (150 PSI Max)
- Size:1/4" to 1" Ports
- Connection:Threaded BSP / NPT
