PRODUCT RANGE

CONTROL & REGULATION VALVES

Engineered control valves and self-acting regulators for precise flow throttling, pressure reduction, and continuous loop process control.

Process Control Steam Pressure Reduction Chemical Dosing Water Booster HVAC Energy Management

PRODUCT RANGE

Choose from our range of modulating control valves and self-acting pressure reducing valves for industrial utilities and harsh process loops.

Control Valves Self-Acting Pressure Reducing Valves

Control Valves

Modulating final control elements driven by smart electro-pneumatic or electric positioners.

Flanged PN16 Globe Control Valve

Flanged PN16 Globe Control Valve

  • Body Material:Nodular Iron GGG40 / WCB / CF8M
  • Trim Material:SS316 Linear / Equal Percentage Plug
  • Seat Material:Metal-to-Metal / PTFE Soft Seat (Class VI)
  • Temperature Range:-10°C to +200°C (up to +350°C)
  • Pressure Rating:PN16–PN420 / Class 150–Class 2500
  • Size:1/2" to 20" (DN15–DN500)
  • Connection:Flanged / Butt Weld (EN / ASME)
GET QUOTE

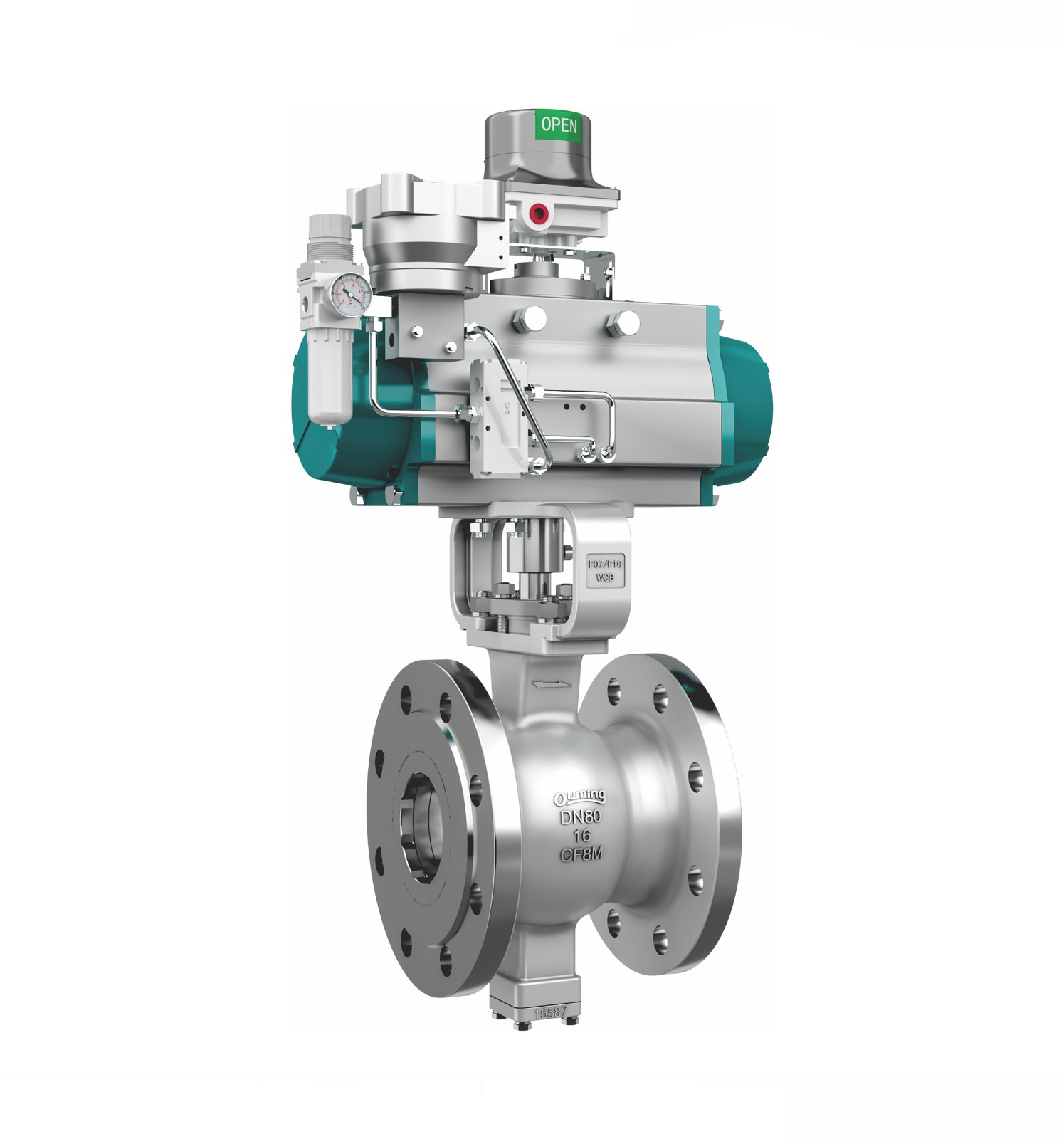

V-Segment Ball Valve

V-Segment Ball Valve

  • Body Material:CF8M (SS316) / WCB / Duplex
  • Ball Material:SS316 Hard Chrome / Stellite 30°/60°/90°
  • Seat Material:R-PTFE / Metal Hardfaced Stellite
  • Temperature Range:-29°C to +200°C (Metal up to +350°C)
  • Pressure Rating:Class 150 / 300 / PN16–PN40
  • Size:1" to 12" (DN25–DN300)
  • Connection:Wafer / Flanged (Slurry & Fibrous)
GET QUOTE

Self-Acting Pressure Reducing Valves

Self-contained regulators operating automatically without external air or electrical supplies.

Direct Acting Pressure Reducing Valve

Direct Acting Pressure Reducing Valve

  • Body Material:CF8M Stainless Steel (1.4408)
  • Trim Material:Stainless Steel AISI 316 Plug
  • Seat Material:FPM (Viton) Soft Resilient Seat
  • Temperature Range:0°C to +80°C
  • Pressure Rating:PN25 (Outlet 1 to 6 bar adjustable)
  • Size:1/2" to 2" (DN15–DN50)
  • Connection:Threaded Female (BSPT / NPT)
GET QUOTE

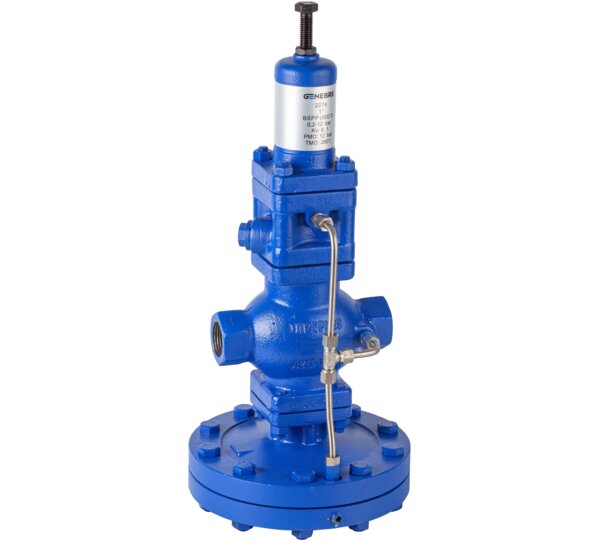

Threaded Pilot Operated Pressure Reducing Valve

Threaded Pilot Operated Pressure Reducing Valve

  • Body Material:Cast Iron / WCB / Stainless Steel
  • Trim Material:Stainless Steel SS420 / 304 Trim
  • Seat Material:Hardened Stainless Steel / Stellite
  • Temperature Range:Up to +220°C (Steam service)
  • Pressure Rating:25 Bar Inlet (Outlet 0.5–12 bar)
  • Size:1/2" to 2" (DN15–DN50)
  • Connection:Threaded Female (BSPT / NPT)
GET QUOTE
Flanged Pilot Operated Pressure Reducing Valve

Flanged Pilot Operated Pressure Reducing Valve

  • Body Material:Ductile Iron GGG40 / Cast Steel WCB
  • Trim Material:SS304 / SS316 High Precision Trim
  • Seat Material:Hardened Stainless Steel / Stellite
  • Temperature Range:-10°C to +220°C (Steam & Water)
  • Pressure Rating:PN16–PN40 (Outlet 0.5 to 14 bar)
  • Size:2" to 8" (DN50–DN200)
  • Connection:Flanged (EN 1092-2 / ANSI B16.5)
GET QUOTE
