PRODUCT RANGE
Choose from our range of gate valve constructions for municipal water, stainless process lines, high pressure forged steam, and heavy-duty API pipelines.
Gate Valve Range
Full bore flow path with minimal pressure drop across standard resilient seated and metal-to-metal wedge designs.
DI body Gate Valve with EPDM Seal
- Body Material:Ductile Iron EN-GJS-400 (GGG40)
- Trim Material:Ductile Iron Wedge Encapsulated EPDM
- Seat Material:Resilient EPDM (Smooth Bore)
- Temperature Range:-10°C to +120°C
- Pressure Rating:PN16 (16 bar)
- Size:2" to 12" (DN50–DN300)
- Connection:Flanged (EN 1092-2 PN16 / DIN 2501)

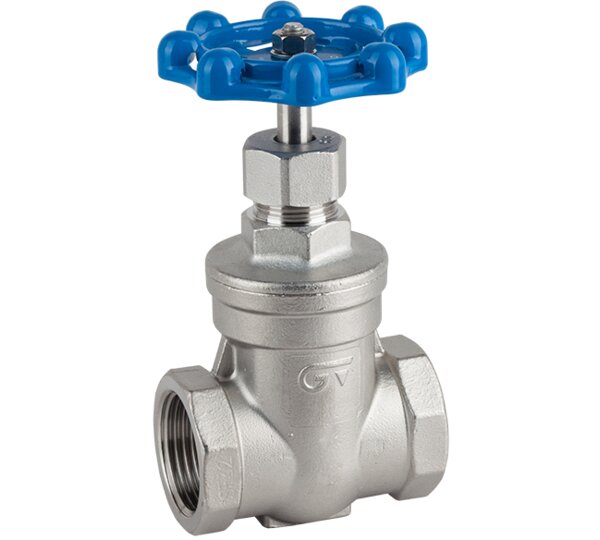

PN16 CF8M Threaded Gate Valve
- Body Material:CF8M (AISI 316 / 1.4408)
- Trim Material:Solid Wedge CF8M (SS316)
- Seat Material:Integral Stainless Steel CF8M
- Temperature Range:-20°C to +180°C
- Pressure Rating:PN16 (16 bar) / 200 WOG
- Size:1/2" to 3" (DN15–DN80)
- Connection:Threaded Female (BSPT / NPT)
API Forged Gate Valve
- Body Material:ASTM A105 / A182 F316 / F11 / F22
- Trim Material:Solid Wedge 13Cr / Stellite / F316
- Seat Material:Hardfaced Stellite Gr. 6 / 13Cr
- Temperature Range:-29°C to +425°C (up to +540°C)
- Pressure Rating:Class 800 / Class 1500
- Size:1/2" to 2" (DN15–DN50)
- Connection:Threaded NPT / Socket Weld (SW)
API Cast Gate Valve
- Body Material:ASTM A216 WCB / ASTM A351 CF8M
- Trim Material:Flexible Wedge WCB + 13Cr / CF8M
- Seat Material:Renewable Stellite Hardfaced Rings
- Temperature Range:-29°C to +425°C
- Pressure Rating:ASME Class 150 / 300 / 600
- Size:2" to 24" (DN50–DN600)
- Connection:Flanged ASME B16.5 RF / RTJ
