PRODUCT RANGE
Choose from our range of globe valves for critical flow regulation, zero-emission bellows sealing, and severe high-pressure isolation.
Globe Valve Range
Linear motion valves designed for throttling flow and reliable tight shut-off under severe thermal cycling.
Bellow Sealed Globe Valve
- Body Material:Cast Steel GP240GH / WCB / CF8M
- Trim Material:Hardened Stainless Steel / Stellite Plug
- Seat Material:SS304 / SS316 Hardfaced Conical Seat
- Temperature Range:-20°C to +350°C (up to +400°C)
- Pressure Rating:PN16 / PN25 / PN40
- Size:1/2" to 10" (DN15–DN250)
- Connection:Flanged (EN 1092-1 / DIN 2501)

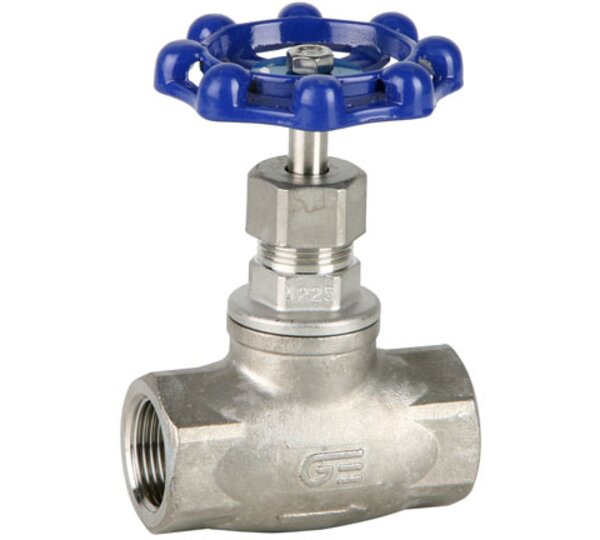

PN16 CF8M Threaded Globe Valve
- Body Material:CF8M (AISI 316 / 1.4408)
- Trim Material:CF8M (SS316) Regulating Plug
- Seat Material:Integral Stainless Steel CF8M
- Temperature Range:-20°C to +180°C
- Pressure Rating:PN16 (16 bar) / 200 WOG
- Size:1/2" to 2" (DN15–DN50)
- Connection:Threaded Female (BSPT / NPT)

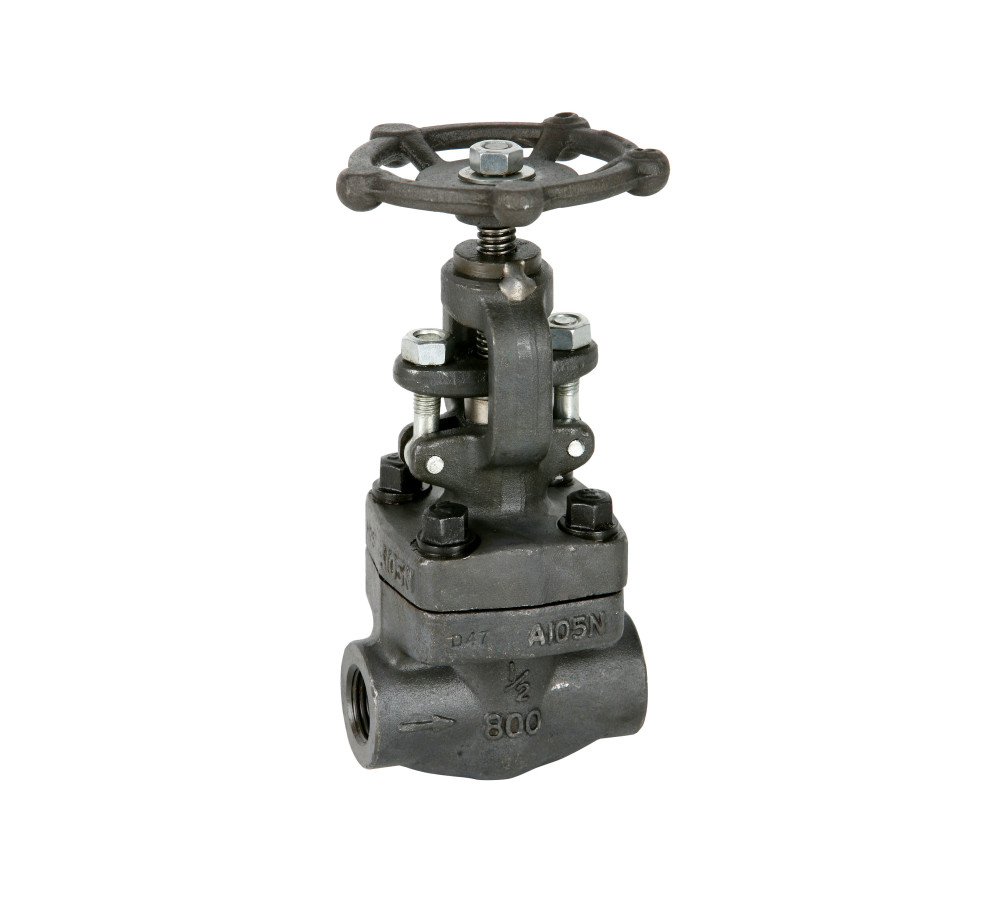

API Forged Globe Valve
- Body Material:ASTM A105 / A182 F316 / F11
- Trim Material:Plug Type 13Cr / Stellite / F316
- Seat Material:Hardfaced Stellite Gr. 6 / 13Cr
- Temperature Range:-29°C to +425°C
- Pressure Rating:Class 800 / Class 1500
- Size:1/2" to 2" (DN15–DN50)
- Connection:Threaded NPT / Socket Weld (SW)

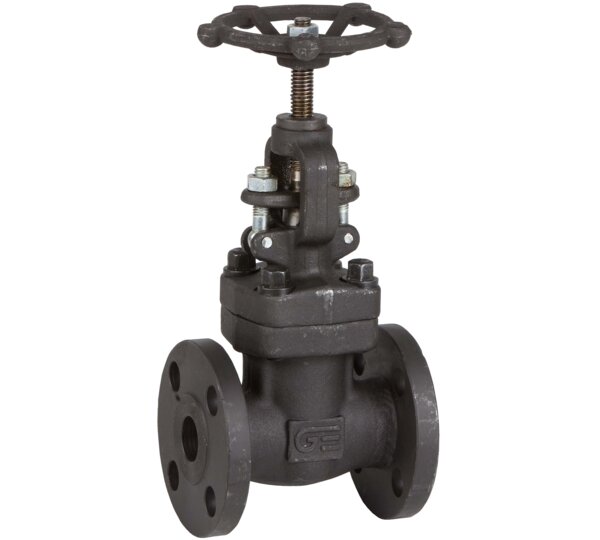

API Cast Globe Valve
- Body Material:ASTM A216 WCB / ASTM A351 CF8M
- Trim Material:Plug Disc WCB + 13Cr / CF8M
- Seat Material:Renewable Stellite Hardfaced Rings
- Temperature Range:-29°C to +425°C
- Pressure Rating:ASME Class 150 / 300 / 600
- Size:2" to 12" (DN50–DN300)
- Connection:Flanged ASME B16.5 RF
