PRODUCT RANGE
Choose from our range of forged carbon steel and stainless steel needle valves for instrumentation lines, pressure gauges, and test systems.
Needle Valve Range
Non-rotating hardened stem tips providing bubble-tight shut-off and fine flow adjustment under extreme pressures.
10,000 lbs A182 F316 Needle Valve
- Body Material:ASTM A182 F316 (Forged SS316)
- Trim Material:SS316 Non-Rotating Hardened Tip
- Seat Material:Metal-to-Metal Integral Seat
- Temperature Range:-54°C to +232°C (PTFE) / +450°C (Graphite)
- Pressure Rating:10,000 PSI (690 Bar)
- Size:1/4" to 1" (DN6–DN25)
- Connection:Female NPT / BSPT / Twin Ferrule

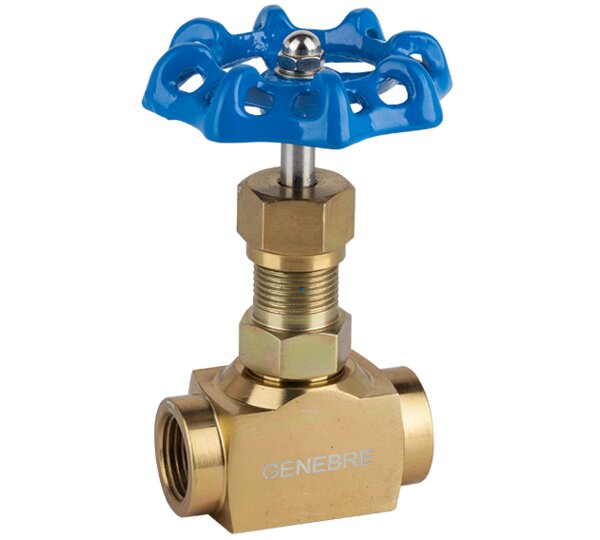

3,000 lbs A105 Needle Valve
- Body Material:ASTM A105 Carbon Steel (Zinc Plated)
- Trim Material:AISI 410 / 304 Hardened Stem
- Seat Material:Metal-to-Metal Integral Seat
- Temperature Range:-20°C to +200°C
- Pressure Rating:3,000 PSI (210 Bar)
- Size:1/4" to 1" (DN6–DN25)
- Connection:Female NPT / BSPT

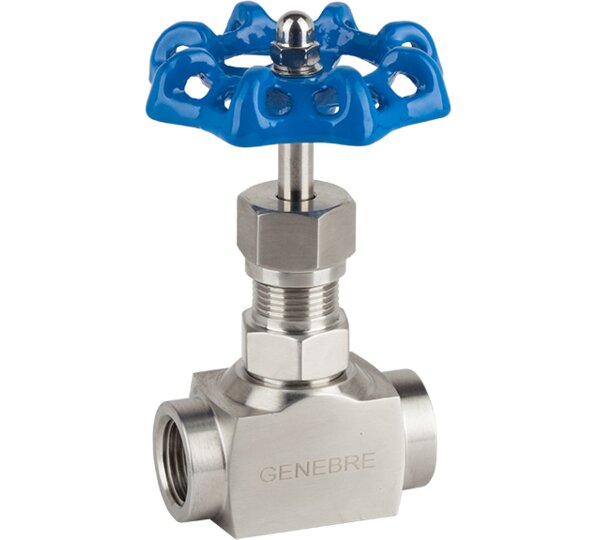

3,000 lbs A182 F316 Needle Valve
- Body Material:ASTM A182 F316 Stainless Steel
- Trim Material:AISI 316 Non-Rotating Tip
- Seat Material:Metal-to-Metal Integral Seat
- Temperature Range:-54°C to +232°C
- Pressure Rating:3,000 PSI (210 Bar)
- Size:1/4" to 1" (DN6–DN25)
- Connection:Female NPT / BSPT

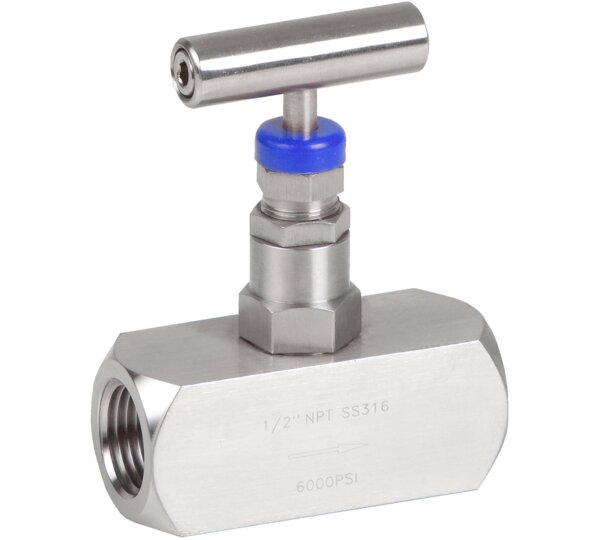

6,000 lbs A182 F316 Needle Valve
- Body Material:ASTM A182 F316 Stainless Steel
- Trim Material:AISI 316 Hardened Non-Rotating
- Seat Material:Metal-to-Metal Integral Seat
- Temperature Range:-54°C to +232°C (Graphite up to +450°C)
- Pressure Rating:6,000 PSI (414 Bar)
- Size:1/4" to 1" (DN6–DN25)
- Connection:Female NPT / BSPP / Ferrule Tube

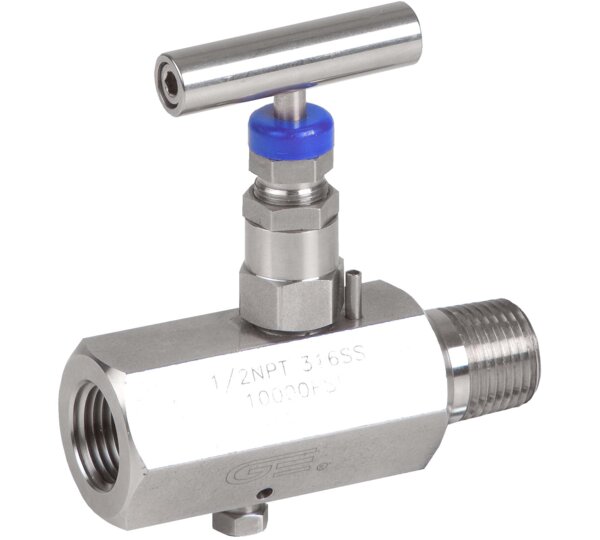

6,000 lbs A182 F316 Needle Valve with vent port
- Body Material:ASTM A182 F316 Stainless Steel
- Trim Material:AISI 316 Non-Rotating + Vent Bleed
- Seat Material:Metal-to-Metal Integral Seat
- Temperature Range:-54°C to +232°C
- Pressure Rating:6,000 PSI (414 Bar)
- Size:1/4" to 1/2" (DN8–DN15)
- Connection:1/2" NPT Female with 1/4" Vent Port
