PRODUCT RANGE
Explore our complete line of sanitary valves and high-purity stainless steel tri-clamp accessories polished to Ra ≤ 0.4 µm.
Sanitary Line Valves
High purity stainless steel valves with mirror polished flow paths for aseptic processing.
Sanitary Ball Valve Threaded / Welded Ends
- Body Material:AISI 304 Stainless Steel
- Ball Material:AISI 304 Polished
- Seat Material:PTFE + NBR Gaskets
- Temperature Range:-20°C to +150°C
- Pressure Rating:PN10 / 10 bar
- Size:1" to 4" (DN25–DN100)
- Connection:DIN 11851 Threaded / Butt Weld
3-Piece Sanitary Ball Valve Clamp Ends
- Body Material:AISI 316L (1.4404) High Polish
- Ball Material:AISI 316L Full Bore Cavity Filled
- Seat Material:Virgin PTFE (FDA 21 CFR 177.1550)
- Temperature Range:-20°C to +160°C (SIP Capable)
- Pressure Rating:10 bar (PN10)
- Size:1/2" to 4" (DN15–DN100)
- Connection:Tri-Clamp Ends (BS 4825 / ISO 2852)
Sanitary Check Valve Clamp Ends
- Body Material:AISI 316L Stainless Steel
- Disc Material:AISI 316L + Food Grade Return Spring
- Seat Material:EPDM / Silicone / FKM (FDA Grade)
- Temperature Range:-10°C to +130°C
- Pressure Rating:10 bar (PN10)
- Size:1" to 4" (DN25–DN100)
- Connection:Tri-Clamp Ends (Aseptic Backflow)
Sanitary Butterfly Valve Clamp Ends
- Body Material:AISI 316L Forged Stainless Steel
- Disc Material:AISI 316L Mirror Polished Ra < 0.5 µm
- Seat Material:Silicone / EPDM / FKM (FDA Compliant)
- Temperature Range:-10°C to +120°C
- Pressure Rating:10 bar (145 PSI)
- Size:1" to 4" (DN25–DN100)
- Connection:Tri-Clamp Ends with Multi-Position Handle

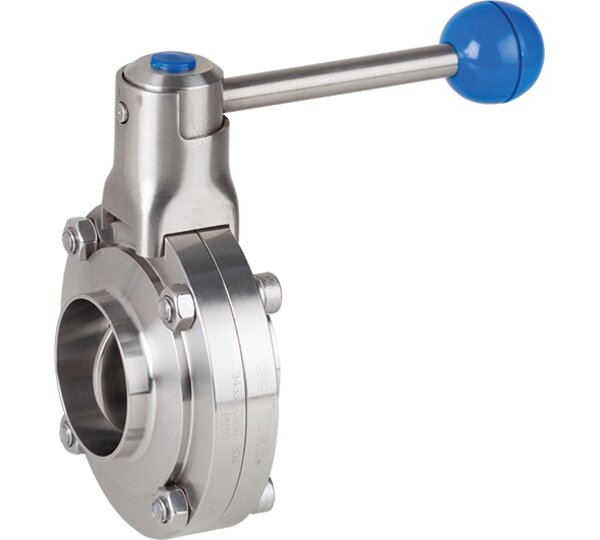

Sanitary Butterfly Valve Welded Ends
- Body Material:AISI 316L Stainless Steel
- Disc Material:AISI 316L Precision Machined
- Seat Material:FDA Certified Silicone / EPDM
- Temperature Range:-10°C to +120°C
- Pressure Rating:10 bar (PN10)
- Size:1" to 4" (DN25–DN100)
- Connection:Butt Weld / Orbital Welding Ends
Sanitary Diaphragm Valve Clamp Ends
- Body Material:AISI 316L Stainless Steel
- Trim Material:Silicone Diaphragm (Weir Type)
- Seat Material:Food Grade Silicone (FDA 21 CFR 177.2600)
- Temperature Range:-10°C to +150°C (Steam Sterilization)
- Pressure Rating:10 bar (PN10)
- Size:1/2" to 2-1/2" (DN15–DN65)
- Connection:Tri-Clamp Ends (Weir Type Zero Deadleg)
Pneumatic Sanitary Diaphragm Valve
- Body Material:AISI 316L Stainless Steel (1.4404)
- Trim Material:Silicone Diaphragm + AISI 304 Actuator
- Seat Material:Food Grade Silicone (FDA Approved)
- Temperature Range:-10°C to +120°C
- Pressure Rating:10 bar (Air supply 4–6 bar)
- Size:1/2" to 2" (DN15–DN50)
- Connection:Tri-Clamp Ends (CIP/SIP Automated)

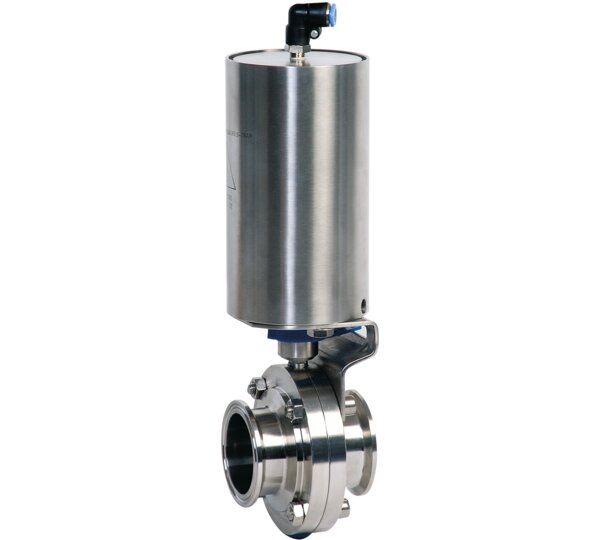

Pneumatic Sanitary Butterfly Valve
- Body Material:AISI 316L Stainless Steel
- Disc Material:AISI 316L Mirror Polished + Actuator
- Seat Material:FDA Food Grade EPDM Elastomer
- Temperature Range:-10°C to +120°C
- Pressure Rating:10 bar (Pneumatic 5–7 bar)
- Size:1" to 4" (DN25–DN100)
- Connection:Tri-Clamp Ends with Control Top Options
Sanitary Valve Accessories
High purity connecting unions, tri-clamps, elbows, reducers, and rotary cleaning heads.

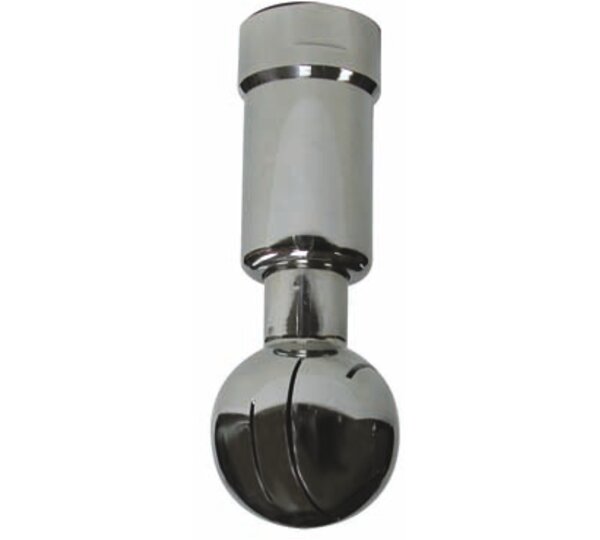

Sanitary Cleaning Ball
- Body Material:AISI 316L (1.4404) Stainless Steel
- Trim Material:360° Rotary / Static Spray Head
- Seat Material:Stainless Steel Bearing Balls
- Temperature Range:Up to +140°C
- Pressure Rating:1 to 3 bar CIP spray pressure
- Size:1/2" to 2" Female / Pin Fix
- Connection:Threaded / Clamp / Pin Fixed
Threaded Ring for Welded Connector DIN 11851
- Body Material:AISI 304 Stainless Steel
- Standard:DIN 11851 Hygienic Pipe Union
- Thread Type:Rd Round Hygienic Thread
- Temperature Range:-20°C to +180°C
- Pressure Rating:PN25 / PN40
- Size:DN10 to DN150
- Connection:Slotted Nut for Union Assembly

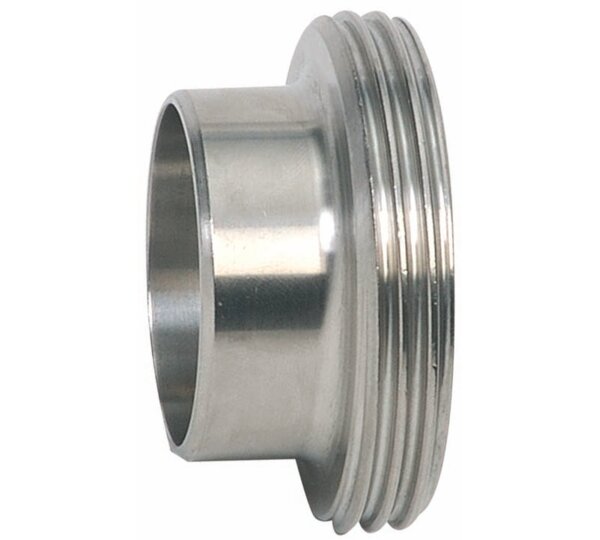

Male Connection for Welding DIN 11851
- Body Material:AISI 316L (1.4404)
- Standard:DIN 11851 Hygienic Fitting
- Surface Finish:Ra < 0.8 µm sanitary polish
- Temperature Range:-20°C to +180°C
- Pressure Rating:PN25 / PN40
- Size:DN10 to DN150
- Connection:Round Male Thread x Butt Weld

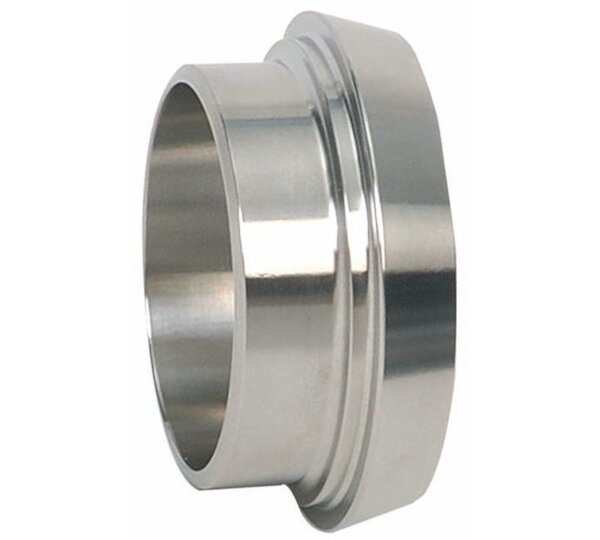

Clamp Liner for Welding
- Body Material:AISI 316L (1.4404)
- Standard:DIN 11851 Liner Ferrule
- Finish:Hygienic Semi-Spherical Seating Face
- Temperature Range:-20°C to +180°C
- Pressure Rating:PN25 / PN40
- Size:DN10 to DN150
- Connection:Liner Neck for Butt Welding

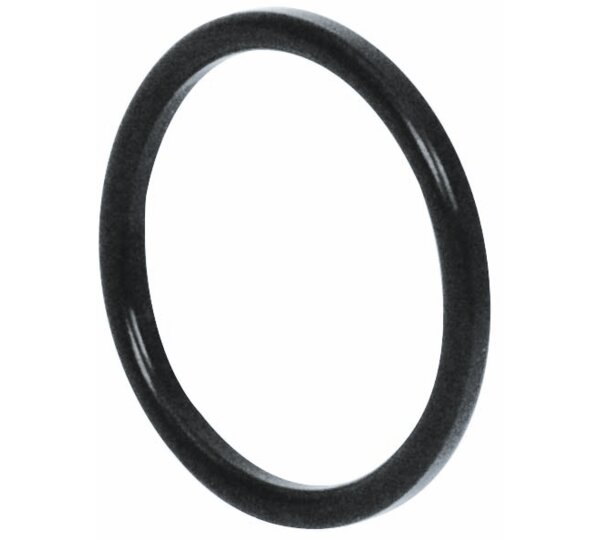

EPDM O-Ring for DIN 11851 Connector
- Body Material:Food Grade EPDM (Black / Blue)
- Certification:FDA 21 CFR 177.2600 / 3A
- Hardness:70° Shore A
- Temperature Range:-25°C to +130°C
- Pressure Rating:Matches DIN 11851 Union
- Size:DN10 to DN150
- Application:Aseptic Lip Seal for Food & Beverage
Sanitary T-Clamp Tee Fitting
- Body Material:AISI 316L (1.4404) Stainless Steel
- Design:Equal Tee Tri-Clamp Branch
- Surface Roughness:Internal Mirror Polish Ra < 0.5 µm
- Temperature Range:-20°C to +150°C
- Pressure Rating:10 bar (145 PSI)
- Size:1" to 4" (DN25–DN100)
- Connection:Tri-Clamp Ferrule (All 3 Ends)

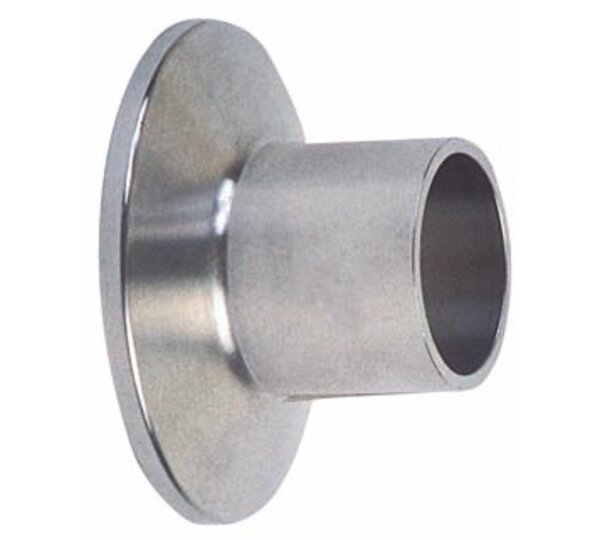

Sanitary Clamp Welding Socket
- Body Material:AISI 316L Stainless Steel
- Design:Short / Long Welding Ferrule
- Tolerance:ISO 2852 / BS 4825 Part 3
- Temperature Range:-20°C to +200°C
- Pressure Rating:10 to 16 bar
- Size:1/2" to 4" (DN15–DN100)
- Connection:Clamp End x Orbital Butt Weld
Sanitary Clamp Blind End Cap
- Body Material:AISI 316L Stainless Steel
- Design:Solid Hygienic Blank End Cap
- Surface Finish:Mirror Polished Ra < 0.4 µm
- Temperature Range:-20°C to +200°C
- Pressure Rating:10 bar (PN10)
- Size:1/2" to 6" (DN15–DN150)
- Connection:Tri-Clamp Blanking End

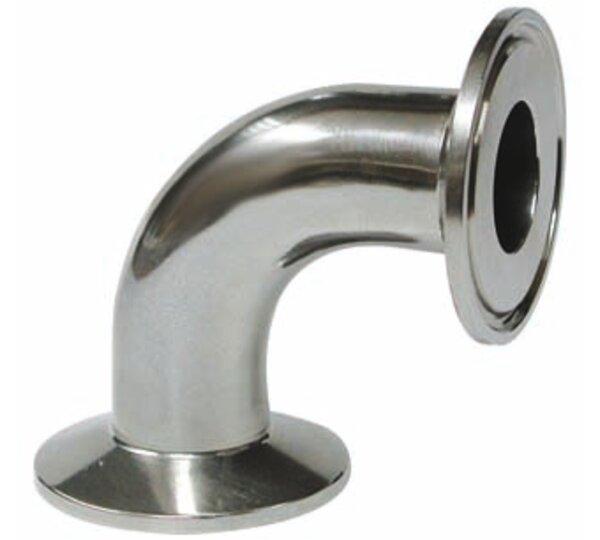

Sanitary Clamp 90° Elbow
- Body Material:AISI 316L (1.4404)
- Bend Radius:1.5D Sanitary Smooth Radius
- Internal Finish:Electropolished Ra < 0.4 µm
- Temperature Range:-20°C to +150°C
- Pressure Rating:10 bar (145 PSI)
- Size:1" to 4" (DN25–DN100)
- Connection:Tri-Clamp Ends (Both Sides)

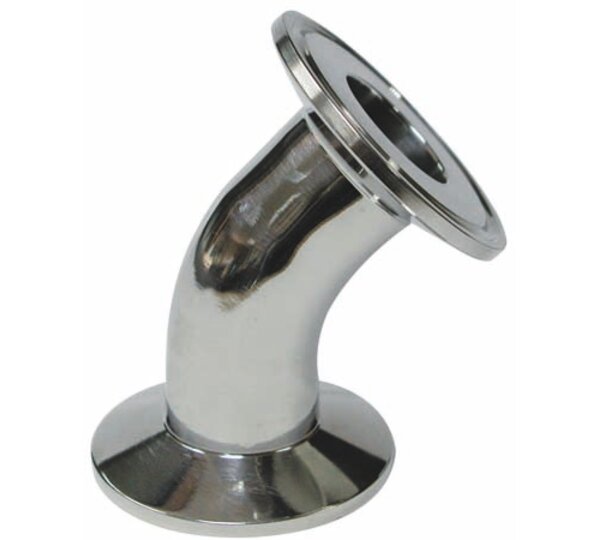

Sanitary Clamp 45° Elbow
- Body Material:AISI 316L (1.4404)
- Design:45-Degree Hygienic Pipe Bend
- Internal Finish:Mirror Polish Ra < 0.4 µm
- Temperature Range:-20°C to +150°C
- Pressure Rating:10 bar (145 PSI)
- Size:1" to 4" (DN25–DN100)
- Connection:Tri-Clamp Ends (Both Sides)
Quick-Locking Binding Clamp
- Body Material:AISI 304 Stainless Steel
- Hinge Type:Heavy-Duty Double Pin Hinged
- Fastener:Ergonomic Wing Nut Fastener
- Temperature Range:-40°C to +180°C
- Clamping Force:Uniform Circumferential Seal Compression
- Size:1/2" to 6" Ferrule Flange Sizes
- Connection:Tri-Clamp Quick Release Connection
Sanitary Clamp Ends Joint Ferrule
- Body Material:AISI 316L (1.4404) Stainless Steel
- Design:Double Clamp Ferrule Adapter / Spool
- Standard:BS 4825 / ISO 2852 / 3A
- Temperature Range:-20°C to +150°C
- Pressure Rating:10 bar (PN10)
- Size:1" to 4" (DN25–DN100)
- Connection:Tri-Clamp to Tri-Clamp Joining Piece
Concentric Clamp Pipe Reduction
- Body Material:AISI 316L (1.4404)
- Type:Concentric Smooth Taper Reducer
- Internal Polish:Ra < 0.4 µm Self-Draining
- Temperature Range:-20°C to +150°C
- Pressure Rating:10 bar (PN10)
- Size:1-1/2"x1", 2"x1-1/2", 3"x2", 4"x3"
- Connection:Tri-Clamp Ends (Large to Small)
