GENEBRE • CE / PED CERTIFIED
Steam Trapping, Moisture Separation & Accessories
Precision condensate discharge devices preventing live steam loss while actively draining condensate at saturation temperatures.
GENEBRE REF. 2282
Thermodynamic Steam Trap
- Body Material:Stainless Steel ASTM A276 Type 420
- Disc / Seat:Hardened Stainless Disc (One Moving Part)
- Internal Strainer:Integral Removable SS Mesh Screen
- Pressure Rating:PN63 (PMA: 63 Bar / PMO: 52 Bar)
- Max Temperature:+425°C (TMA) / +400°C (TMO)
- Size Range:1/2" to 1" (DN15–DN25)
- Connection:Threaded ISO 228/1 Female (G)
GENEBRE REF. 2288
Inverter Bucket Steam Trap
- Body Material:Ductile Iron GGG-40 Body & Cover
- Trim Material:Stainless Steel SS304 Bucket & Lever
- Valve & Seat:Hardened Stainless Steel (Self-Cleaning)
- Dirt Resistance:High (Continuous Dirt Scale Blow-off)
- Pressure Rating:PN16 (PMA: 14 Bar / TMA: 300°C)
- Size Range:1/2" and 3/4" (DN15–DN20)
- Connection:Threaded ISO 228-1 (BSP) Female
GENEBRE REF. 2286
Ball Float Trap with Air Vent
- Body Material:Cast Steel 1.0619 (WCB) Body & Cover
- Mechanism:Continuous Modulating SS304/SS316 Float
- Integral Air Vent:Thermostatic Capsule for Fast Startup
- Discharge Mode:Modulating at Saturation Temp
- Differential ΔP:Model 045 (Max 4.5 Bar) / Model 100 (Max 10 Bar)
- Size Range:1/2" to 1" (DN15–DN25)
- Connection:Flanged EN 1092-1 PN16
GENEBRE REF. 2294
Thermostatic Steam Trap
- Body Material:Forged Carbon Steel ASTM A105 Body & Cover
- Capsule Trim:SS304 Membrane + Inconel Spring
- Internal Strainer:Integral Removable SS304 Mesh Screen
- Air Venting:Automatic High-Capacity Startup Air Purge
- Pressure Rating:PN40 (PMA: 38 Bar / TMA: 300°C / Max ΔP: 21 Bar)
- Size Range:1/2" to 1" (DN15–DN25)
- Connection:Threaded ISO 228/1 Female (G)
GENEBRE REF. 2297A
Moisture Separator
- Body Material:Ductile Iron Body with A105 Steel Plugs
- Separation Trim:Centrifugal Coalescing Cyclone Baffle
- Dryness Yield:>98% Dry Saturated Steam
- Pressure Drop:Negligible (ΔP < 0.05 Bar)
- Pressure Rating:PN25 (PMA: 17.2 Bar / TMA: 300°C)
- Size Range:1-1/2" to 4" (DN40–DN100)
- Connection:Flanged ASME B16.5 Class 150

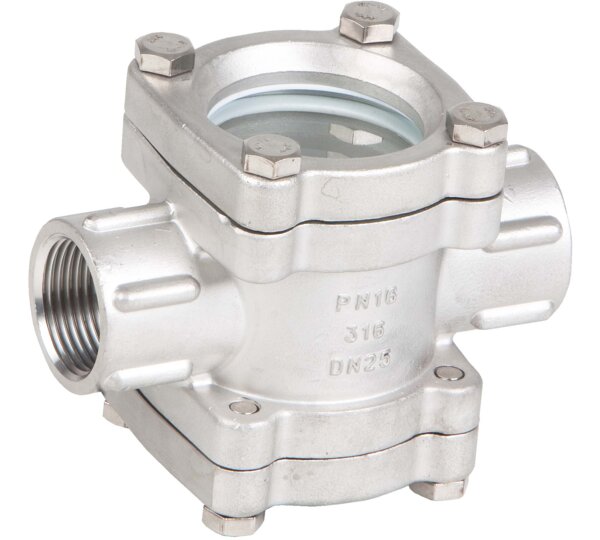

GENEBRE REF. 2240 / 2250 • REF. 2415
Steam Sight Glasses & Checks
- Body Material:Cast Iron GG25 / Stainless Steel CF8M
- Sight Window:Double-Window Tempered Borosilicate
- Steam Shield:Protective Mica Shield (Up to +280°C)
- Check Valve:Ref. 2415 Wafer Disc Check PN40
- Pressure Rating:PN16 / PN40 (1/2" to 4" / DN15–DN100)
- Connection:Threaded BSP / Flanged PN16
- Application:Visual Monitoring of Steam Trap Discharge
VMV VALVE • ENGINEERED THERMAL SYSTEMS
Modular Stations, Manifolds & Mechanical Condensate Pumps
Integrated single-block trap stations, pre-fabricated distribution headers, and steam-driven non-electric condensate recovery systems.
VMV VALVE • FORGED MANIFOLD
Bellow Forged Steel Manifold
- Body Material:Forged Carbon Steel ASTM A105
- Stem Sealing:SS304 Bellows + Secondary Graphite Packing
- Valve Core:SS440C Martensitic Hardened Core
- Port Layout:4, 8, or 12 Port Standard Branch Outlets
- Pressure:PN40 / Class 300 (Max 4.0 MPa / 350°C)
- Trap Port:Integrated Bottom Condensate Trap Port
- Advantage:Zero Stem Leakage, Reduces Welds & Space
VMV VALVE • SHT11TVS SERIES
Steam Trap Station
- Body Material:Forged Stainless Steel F304 / F316
- Internal Trim:All Stainless Steel (SS304, 420, 440C)
- Architecture:Upstream/Downstream Isolation + Check
- Water Seal:U-Shaped Stainless Flow Channel
- Backpressure:High Tolerance (Exceeds 90% Rate)
- Rating & Size:PN25 (PMO 16 Bar) | DN15–DN25
- Advantage:Zero Live Steam Loss, Clean Inline Trap
VMV VALVE • CONDENSATE RECOVERY
Pump Trap System
- Body Material:Cast Steel WCB / ASTM A105 (PN16)
- Motive Power:Live Steam or Compressed Air (No Power)
- Mechanism:Nickel Superalloy Snap-Action Spring
- Cavitation:Zero (Handles 100°C+ Boiling Condensate)
- Internal Trim:SS304 Float, 420 Seat, 440C Core
- Maintenance:In-Line Servicing Without Disconnection
- Application:Vacuum & Low-Pressure Stall Prevention
