PRODUCT RANGE
Choose from our range of Y-strainers, basket filters, duplex strainers, flow sight glasses, and flexible expansion joints.
Strainers & Filtration
Mechanical filtration protecting downstream valves, pumps, flowmeters, and steam traps from weld slag and pipe debris.
Flanged Cast Iron Y-Strainer PN16
- Body Material:Cast Iron GG25 / Ductile Iron GGG40
- Trim Material:AISI 304 Stainless Mesh Screen
- Seat Material:PTFE + Graphite Body Gasket
- Temperature Range:-10°C to +120°C (up to +200°C)
- Pressure Rating:PN16 (16 bar)
- Size:2" to 12" (DN50–DN300)
- Connection:Flanged (EN 1092-2 PN16)

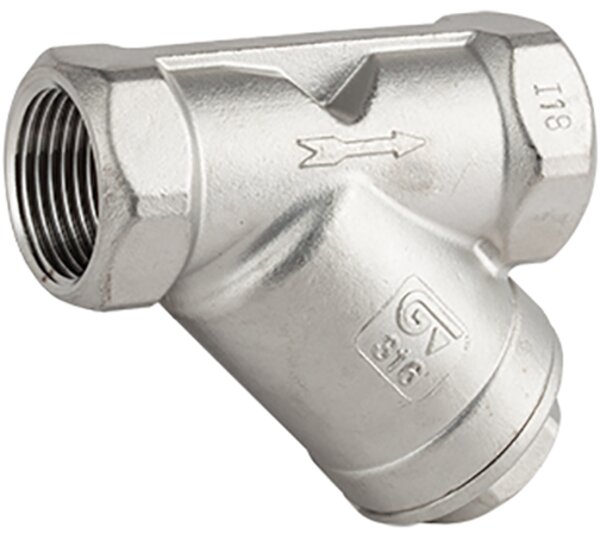

Threaded CF8M Y-Strainer PN40
- Body Material:CF8M (AISI 316 / 1.4408) Stainless Steel
- Trim Material:AISI 316 Stainless Mesh Screen
- Seat Material:PTFE Bonnet Gasket + Blow-off Plug
- Temperature Range:-20°C to +200°C
- Pressure Rating:PN40 (40 bar) / 600 PSI WOG
- Size:1/4" to 3" (DN8–DN80)
- Connection:Threaded Female (BSPT / NPT)
Simplex Basket Strainer
- Body Material:Cast Steel WCB / Ductile Iron / CF8M
- Trim Material:Removable SS316 Perforated Basket
- Seat Material:Viton / PTFE / Spiral Wound Gasket
- Temperature Range:-20°C to +200°C
- Pressure Rating:Class 150 / PN16 / PN25
- Size:2" to 16" (DN50–DN400)
- Connection:Flanged ASME B16.5 / DIN PN16
Duplex Basket Strainer
- Body Material:Cast Iron / WCB / SS316 Dual Chamber
- Trim Material:SS316 Heavy-Duty Baskets + Diverter
- Seat Material:PTFE / Metal Resilient Diverter Seal
- Temperature Range:-10°C to +150°C
- Pressure Rating:PN16 / Class 150
- Size:2" to 8" (DN50–DN200)
- Connection:Flanged (Lubrication & Fuel Oil Lines)
Flow & Pipeline Accessories
In-line visual flow monitoring, automated air release, and flexible pipe movement compensators.
Threaded Sight Glass
- Body Material:CF8M Stainless Steel (1.4408)
- Trim Material:Tempered Soda-Lime Glass (DIN 8902)
- Seat Material:PTFE Body Gasket
- Temperature Range:-20°C to +200°C
- Pressure Rating:PN16 (16 bar)
- Size:1/2" to 2" (DN15–DN50)
- Connection:Threaded Female (BSPT / NPT)
Flanged Sight Glass
- Body Material:WCB / Cast Iron / CF8M Stainless Steel
- Trim Material:Tempered Soda-Lime Glass (DIN 8902)
- Seat Material:PTFE Body Gaskets
- Temperature Range:-10°C to +260°C
- Pressure Rating:PN16 / PN40 / Class 150
- Size:1" to 8" (DN25–DN200)
- Connection:Flanged (EN 1092-1 / ASME B16.5)
Air Release & Vacuum Valve
- Body Material:Ductile Iron GGG40 Epoxy Coated / SS316
- Trim Material:SS304 / SS316 Float Mechanism
- Seat Material:Resilient EPDM / NBR Seal Ring
- Temperature Range:0°C to +80°C
- Pressure Rating:PN16 / PN25
- Size:1" to 4" (DN25–DN100)
- Connection:Threaded (DN25–50) / Flanged (DN50–100)

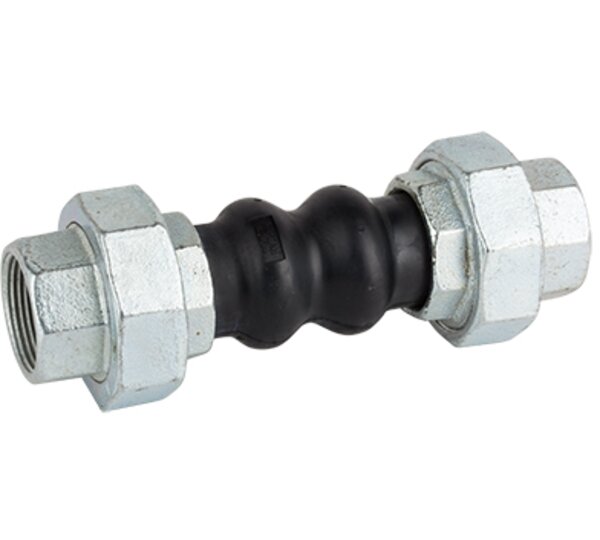

Threaded Rubber Expansion Joint
- Body Material:EPDM Rubber Bellows (Reinforced)
- Trim Material:Malleable Carbon Steel Unions
- Seat Material:Integral Molded EPDM Sealing Flange
- Temperature Range:-10°C to +100°C
- Pressure Rating:PN10 / PN16 (10–16 bar)
- Size:1/2" to 3" (DN15–DN80)
- Connection:Female Threaded BSP / NPT Unions

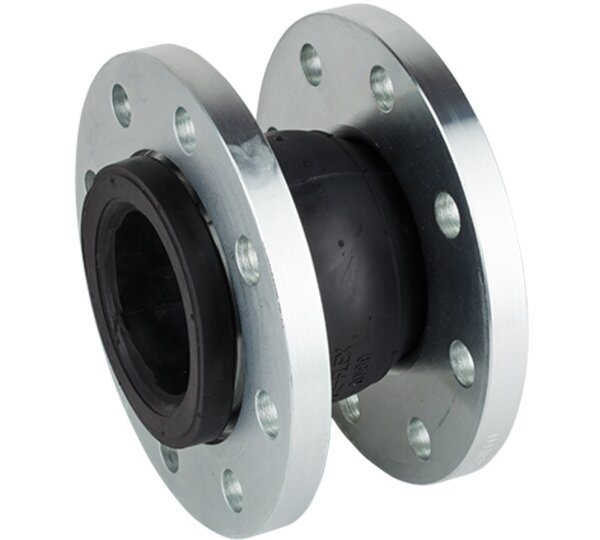

Flanged Rubber Expansion Joint
- Body Material:EPDM Rubber Bellows (Reinforced)
- Trim Material:Carbon Steel Zinc Plated Swivel Flanges
- Seat Material:Integral Molded EPDM Sealing Face
- Temperature Range:-10°C to +105°C
- Pressure Rating:PN16 (16 bar)
- Size:1-1/4" to 24" (DN32–DN600)
- Connection:Swivel Flanged (EN 1092-1 / ANSI 150)
Flanged Metal Expansion Joint with Inner Liner
- Body Material:AISI 304 (1.4301) Multi-Ply Bellows
- Trim Material:SS316 Internal Flow Liner + Tie Rods
- Seat Material:Welded Bellows to Carbon Steel Flanges
- Temperature Range:-20°C to +400°C (High Temp Steam & Exhaust)
- Pressure Rating:PN16 / PN25 / Class 150
- Size:2" to 24" (DN50–DN600)
- Connection:Fixed / Floating Flanged Ends (EN 1092)
